DV-100-3-GN

Name: DV-100-3-GN
Brand: HESTORE
SKU: 100.480.05
Availability: InStock

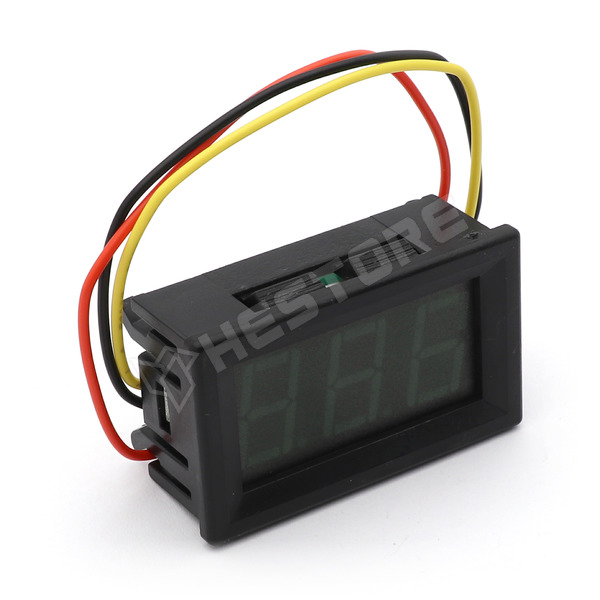

Voltage meter, 0.56" 3 digit display, supply voltage: 4...30V DC, measured voltage: 0...100V DC, green

Connection:
- Black wire: GND
- Red wire: voltage meter positive supply: 4...30V DC
- Yellow wire: measured voltage positive: 0...100V DC

Operating voltage	4...30V DC
Operating temperature	-10...65°C
Dimensions	48 x 29 x 22mm
Leads	3 leads
Type of display used	7-segment, 0.56"
Supply current	20mA
DC voltage measuring range	0...100V DC
Display color	green

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.05

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	734 Ft
5+	545 Ft
10+	515 Ft
20+	496 Ft
50+	477 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
10-15 workdays	> 2000
