VCS-100V/10A

Name: VCS-100V/10A
Brand: HESTORE
SKU: 100.383.16
Availability: InStock

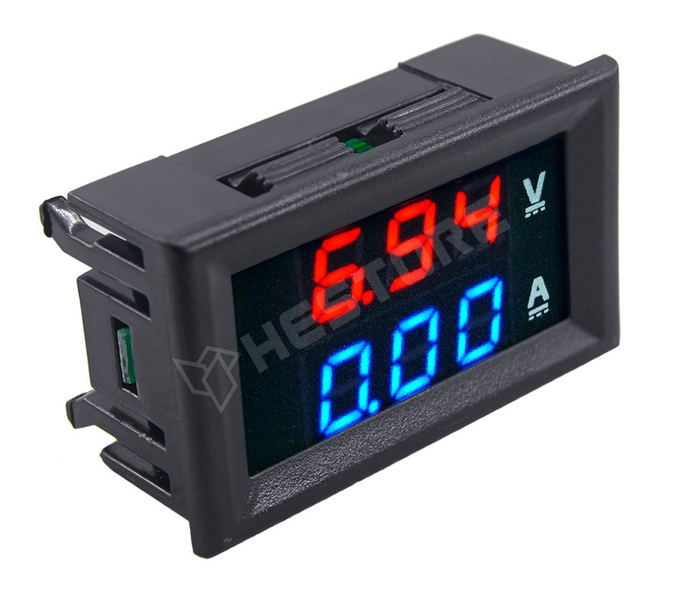

100V, 10A LED voltage and current sensor with built-in shunt

Wiring: (see downloadable attachment)
Thick red and thick black: current measuring wires (0-10A)
Thin red and thin black: VCS-100V power supply (4-30V DC)
Thin yellow: voltage measuring cable (0-100V DC)

Operating voltage	4...30V DC
Operating temperature	-15...70°C
Dimensions	47 x 28 x 16mm
DC voltage measuring range	0...100V DC
DC voltage measuring accuracy	1% (±1 digit)
DC current measuring range	0...10A
DC current measuring accuracy	1% (±1 digit)
Kind of display used	0.28" (2x3 digit)

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.383.16

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 752 Ft
5+	1 521 Ft
10+	1 475 Ft
20+	1 439 Ft
50+	1 395 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 100
10-15 workdays	> 10000

User's manual, HU (PDF, 115 KB)
