DV-100-3-RD

Name: DV-100-3-RD
Brand: HESTORE
SKU: 100.480.04
Availability: InStock

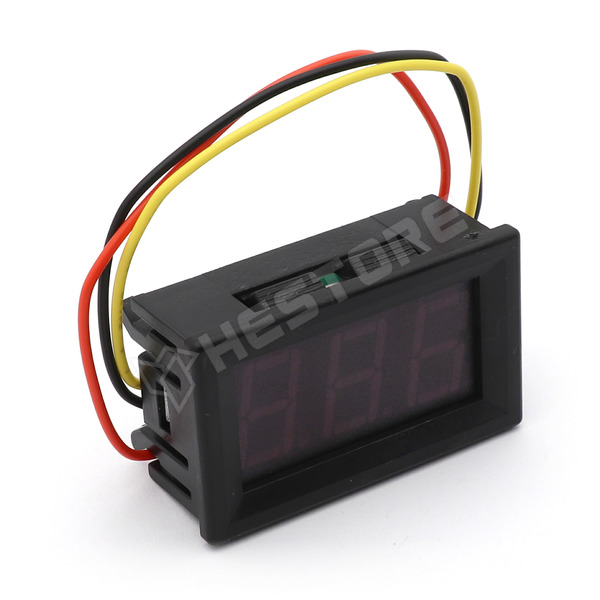

Voltage meter, 0.56" 3 digit display, supply voltage: 4...30V DC, measured voltage: 0...100V DC, red

Connection:
- Black wire: GND
- Red wire: voltage meter positive supply: 4...30V DC
- Yellow wire: measured voltage positive: 0...100V DC

Operating voltage	4...30V DC
Operating temperature	-10...65°C
Dimensions	48 x 29 x 22mm
Leads	3 leads
Type of display used	7-segment, 0.56"
Supply current	20mA
DC voltage measuring range	0...100V DC
Display color	red
