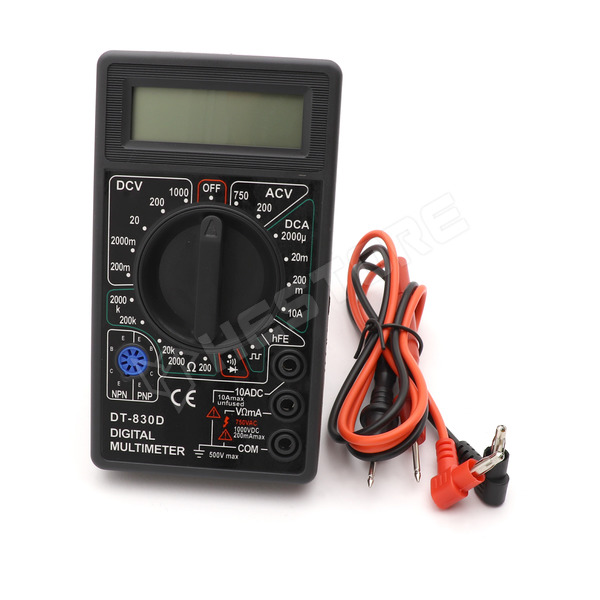

DT830D

Digital multimeter without battery, U,I,R,D,hFE, square signal output

Type of display used	LCD 3,5 digit
Type of meter	digital multimeter
Measuring instrument features	square waveform generator, diode and continuity test
Resistance measuring range	200Ω/2000Ω/20kΩ/200kΩ/2000kΩ
Resistance measuring accuracy	±(2.5% +10 digits) at 200Ω measuring range, ±(2.5% +4 digits) at 2000Ω/20kΩ/200kΩ/2000kΩ measuring range
DC voltage measuring range	200mV/2000mV/20V/200V/1000V
DC voltage measuring accuracy	±(2% +3 digits) at 200mV measuring range, ±(2% +5 digits) at 2000mV/20V/200V measuring range, ±(2.5% +5 digits) at 1000V measuring range
Diode test	yes
Continuity test	yes
AC voltage measuring range	200/750V
AC voltage measuring accuracy	±(2% +10 digit)
DC current measuring range	2000μA/20mA/200mA/10A
DC current measuring accuracy	±(2% +2 digits) at 200μA/2000μA/20mA measuring range, ±(2.5% +2 digits) at 200mA measuring range, ±(2.5% +10 digits) at 10A measuring range
Kind of display used	LCD 3,5 digit
Measurement	resistance, DC voltage, AC voltage, DC current, diode, hFE

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.424.02

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 836 Ft
5+	2 561 Ft
10+	2 497 Ft
20+	2 443 Ft
50+	2 372 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
10-15 workdays	> 2000
