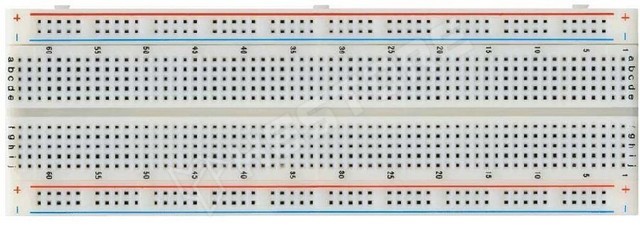

BB-102 (630/200)

Test panel 56x165mm 200/630pin

RoHS	no
Length	166mm
Width	54.5mm
Contact plating	nickel plated
Contact material	phosphor bronze
Soldering equipment features	possibility to combine into larger modules
Type of board	multipurpose
Board variant	prototyping, plug-in
Hole diameter	0.8mm
Soldering pads pitch	2.54mm
Number of contacts points	200, 640
Hole shape	négyszög

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.285.27

Add to favorites

Quantity (pcs):

Packing:
200 pcs / carton

Unit price excl. VAT

1+	1 335 Ft
5+	1 121 Ft
10+	1 081 Ft
20+	1 053 Ft
50+	1 019 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 250
3 workdays	> 10000
10-15 workdays	> 100
