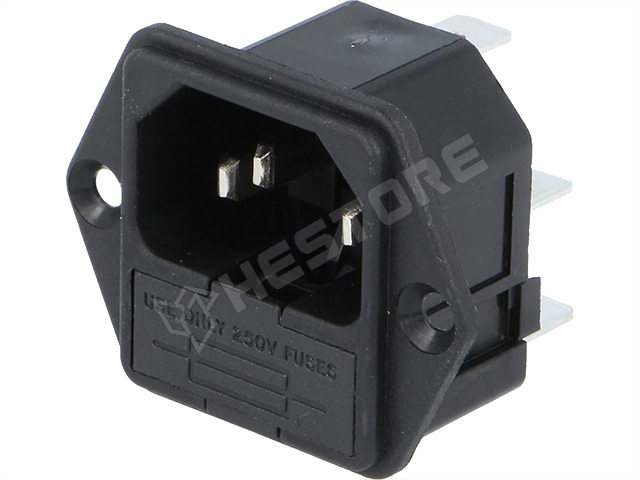

PF0001/63

AC beépíthető aljzat 10A, 250V AC

Manufacturer partno	PF0001/63
RoHS	yes
Manufacturer	BULGIN
Connector	socket
Operating temperature	-40...70°C
Connector variant	AC supply, C14 (E), 1x fuse
Kind of connector	male
Mechanical mounting	for panel mounting, screw
Mounting hole diameter	3.4mm, 27.3x31.12mm
Rated voltage	250V AC
Current rating	10A
Standard	IEC 60320
Leads	6,3x0,8mm connectors
Fuse size	5x20mm, not included
Body material	polyamide
Flammability rating	UL94V-0
Mounting holes pitch	36mm
Type of connector	AC supply
Connector variant	3.4mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.395.43

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 706 Ft
5+	1 477 Ft
10+	1 432 Ft
20+	1 397 Ft
50+	1 353 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 4000
