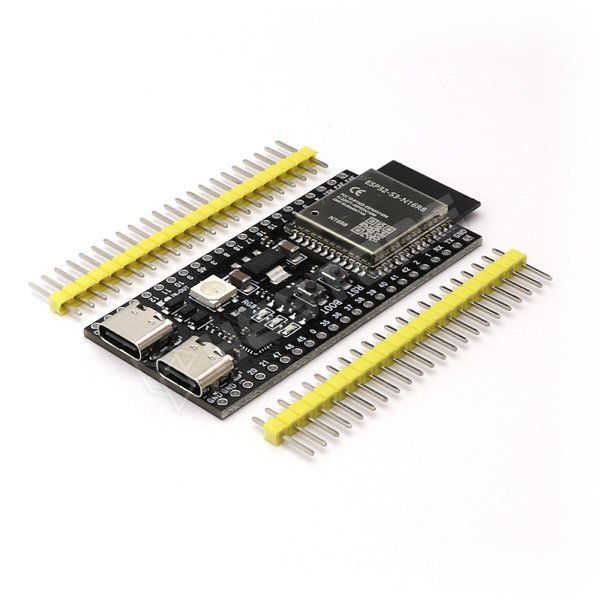

ESP32-S3-DEV-N16R8-US
ESP32-S3 development module, N16R8, with solderless header
XTensa dual-core 32-bit LX7 CPU, frequency up to 240MHz
2.4 GHz Wi-Fi, EEE 802.11 b/g/n-compliant
Bluetooth, LE: Bluetooth 5, Bluetooth mesh
16MB (64Mbit) SPI Flash
384KB ROM
512 KB SRAM
8MB SPI PSRAM
16 KB SRAM in RTC
Communication Interfaces
2 x I2C
2 x I2S
4 x SPI
3 x UARTs
1 x USB OTG
Security
4096 bit OTP
AES, SHA, RSA, ECC and RNG
Secure boot, Flash encryption, Digital signature, HMAC module
Dual Type-C USB connectors
Reset and User/Firmware buttons
RGB WS2812 User LED
Power LED
Virtual USB port provided by CP2102 for debugging and firmware upgrade
Supply Voltage: 5V via USB
Circuit Voltage: 3.0 to 3.6V Circuit Operation
Number of terminals 44pin (2x22pin)
Pin-row distance: 25.4mm
2.4 GHz Wi-Fi, EEE 802.11 b/g/n-compliant
Bluetooth, LE: Bluetooth 5, Bluetooth mesh
16MB (64Mbit) SPI Flash
384KB ROM
512 KB SRAM
8MB SPI PSRAM
16 KB SRAM in RTC
Communication Interfaces
2 x I2C
2 x I2S
4 x SPI
3 x UARTs
1 x USB OTG
Security
4096 bit OTP
AES, SHA, RSA, ECC and RNG
Secure boot, Flash encryption, Digital signature, HMAC module
Dual Type-C USB connectors
Reset and User/Firmware buttons
RGB WS2812 User LED
Power LED
Virtual USB port provided by CP2102 for debugging and firmware upgrade
Supply Voltage: 5V via USB
Circuit Voltage: 3.0 to 3.6V Circuit Operation
Number of terminals 44pin (2x22pin)
Pin-row distance: 25.4mm
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.481.20
Quantity (pcs):
Unit price excl. VAT
| 1+ | 2 301 Ft |
|---|---|
| 5+ | 2 047 Ft |
| 10+ | 1 992 Ft |
| 20+ | 1 947 Ft |
| 50+ | 1 889 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In order | > 20 |
| 10-15 workdays | > 2000 |
