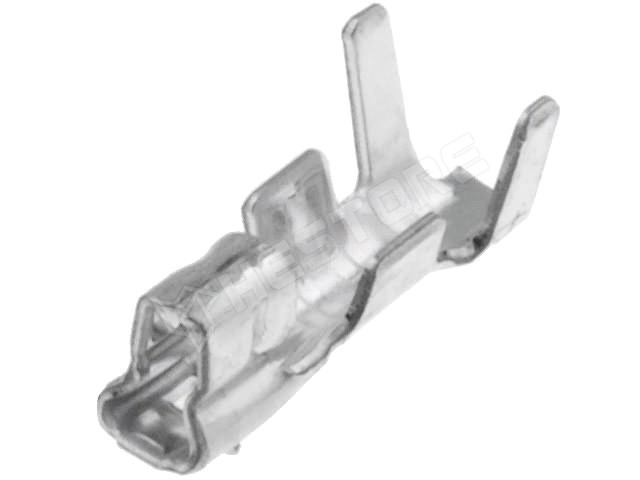

SEH-001T-P0.6

Name: SEH-001T-P0.6
Brand: JST
SKU: 100.341.09
Availability: InStock

Krimp. érintkező EHR-xx-hez

» Long lead time reported on this product.

SEH-001T-P0.6 / Krimp. érintkező EHR-xx-hez (JST)

Vezeték mérete : 22...30AWG
Csatlakozó sorozata : EH
Elektromos szerelés : préselés
Érintkező raszter : 2,5 mm

RoHS	yes
Manufacturer	JST
Type	contact
Connector	contact
Pole	1
Series	EH
Connector variant	wire-board
Kind of connector	female
Electrical mounting	crimped
Mechanical mounting	for cable
Related items	WC-260
Contacts pitch	2.5mm
Current rating	3A
Contact plating	tinned
Contact material	phosphor bronze
Max. voltage	250V
Wire size	30...22AWG
Connector series	EH
Wire cross section	0.05...0.33mm²
Kind of connector	female

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.341.09

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	49,59 Ft
10+	17,25 Ft
50+	10,78 Ft
100+	8,17 Ft
200+	6,81 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 200
3 workdays	> 100000
10-15 workdays	> 25000
