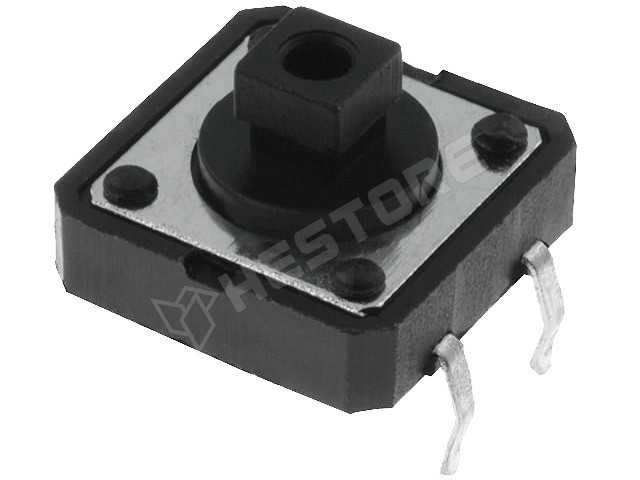

TACTS-24K-F

Mikronyomógomb 7,3mm

RoHS	yes
Manufacturer	NINIGI
Mounting	THT
Terminal pitch	5x12.5mm
Operating temperature	-25...70°C
Body dimensions	12 x 12mm, 12x12mm
Leads	straight, for PCB
Min. insulation resistance	100mΩ, 100MΩ
Type of switch	microswitch, microswitch TACT
Stable positions number	1-position
DC contacts rating	0.05 A / 12 VDC
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Soldering temperature	250°C
Operating Force	1.27N
Max. contact resistance:	50mΩ
Actuator colour	black
Button height	7.3mm
Button shape	square
Button size	3.8x3.8mm
DC contacts rating @R	0.05A / 12V DC
Összes pozíciók száma	2
Light	none

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.323.84

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	62,62 Ft
10+	35,50 Ft
50+	22,19 Ft
100+	19,78 Ft
200+	18,42 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 100
3 workdays	> 10000
