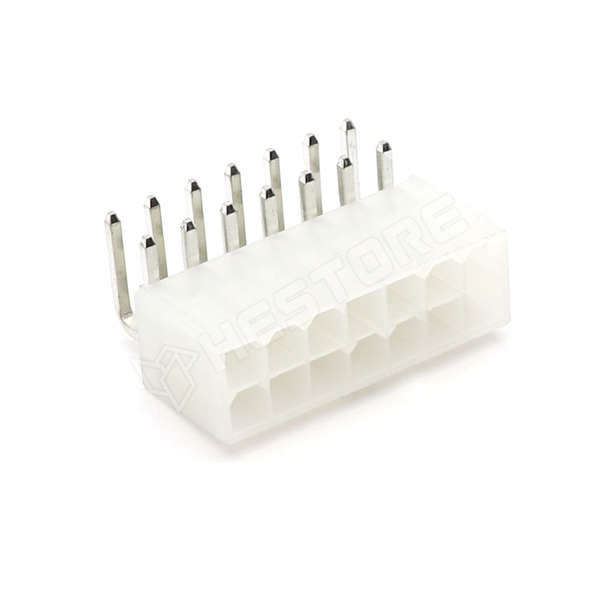

NCWD420-14R

Mini-Fit 14pin male, 90°

Manufacturer partno	NCWD420-14R
RoHS	yes
Manufacturer	Gold Star Connectors
Connector	socket
Connector variant	wire-board
Kind of connector	male
Number of pins	14
Electrical mounting	THT
Spatial orientation	angled 90°
Contacts pitch	4.2mm
Type of pin configuration	2x7
Rated voltage	600V
Contact plating	tinned
Maximum current	9A
Flammability rating	UL94V-2
Connector series	Mini-Fit Jr.
Kind of connector	male

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.303.86

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	269 Ft
5+	168 Ft
10+	145 Ft
20+	132 Ft
50+	123 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 350
