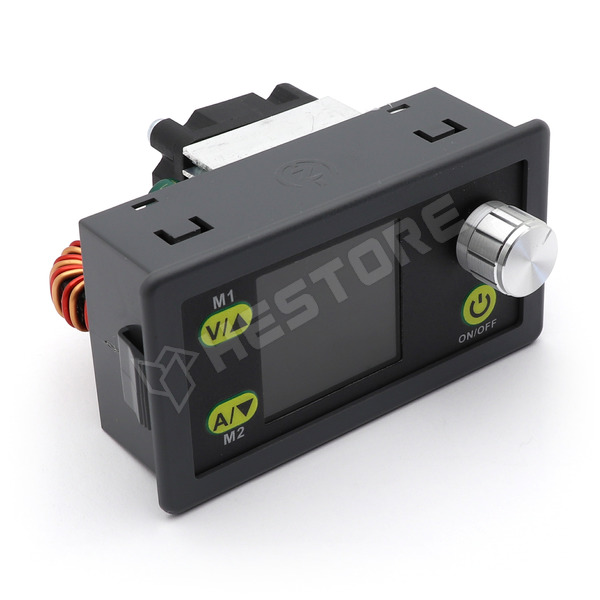

WZ3605E
Programmable DC-DC converter module with power meter, buck, boost, CC, CV, Vin: 6...36V DC, Vout: 0.6...36V DC, 0...5A
Displayed data:
- Input voltage (VIN)
- Output voltage (VOUT)
- Output current (A)
- Power (W)
- Capacity (mAh or Ah) – cumulative value of the current delivered over time
- Energy consumption (Wh) – integrated value of the power delivered over time
- Operating time – how long the module has been operating
- Input voltage (VIN)
- Output voltage (VOUT)
- Output current (A)
- Power (W)
- Capacity (mAh or Ah) – cumulative value of the current delivered over time
- Energy consumption (Wh) – integrated value of the power delivered over time
- Operating time – how long the module has been operating
| Output voltage | 0.6...36V DC |
|---|---|
| Input voltage | 6...36V DC |
| Output current | 5A |
| Number of outputs | 1 |
| Output connector type | screw terminals |
| Input connector type | screw terminals |
| Tápegység fajtája | adjustable |
| Cooling | Fan, heatsink |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.479.22
Quantity (pcs):
Unit price excl. VAT
| 1+ | $ 31.419 |
|---|---|
| 5+ | $ 29.660 |
| 10+ | $ 29.093 |
| 20+ | $ 28.557 |
| 50+ | $ 27.781 |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 5 |
| 10-15 workdays | > 10000 |
