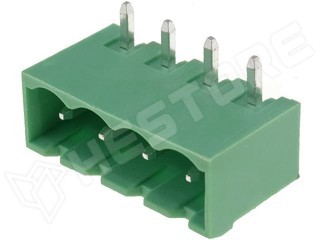

TBG5KW-4GN (CPM5.08SQ-04P)

Sorkapocs, 90° RM5,08 4P zárt

RoHS	yes
Manufacturer	NINIGI
Connector	socket
Colour	green
Pole	4
Orientation	90°
Pitch	5.08
Gender	papa
Operating temperature	-40...105°C
Connector variant	pluggable terminal block
Kind of connector	male
Number of pins	4
Electrical mounting	THT
Mechanical mounting	on PCBs
Length	22.39mm
Spatial orientation	angled 90°
Contacts pitch	5.08mm
Type of pin configuration	1x4
Rated voltage	300V
Current rating	15A
Contact plating	tinned
Number of ways	4
Conform to the norm	UL
Contact material	brass
Flammability rating	UL94V-0
Height	8.4mm
Depth	12mm
Locking system	friction lock
Kind of connector	male
Korpusz anyaga	PA66

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.287.67

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	89,35 Ft
10+	55,85 Ft
50+	38,75 Ft
100+	36,06 Ft
200+	34,42 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 150
3 workdays	> 5000
