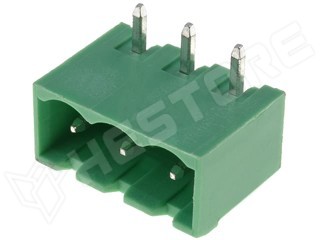

TBG5KW-3GN (CPM5.08SQ-03P)

Sorkapocs, 90° RM5,08 3P zárt

RoHS	yes
Manufacturer	NINIGI, XINYA
Connector	socket
Colour	green
Pole	3
Orientation	90°
Pitch	5.08
Gender	papa
Operating temperature	-40...105°C
Connector variant	pluggable terminal block
Kind of connector	male
Number of pins	3
Electrical mounting	THT
Mechanical mounting	on PCBs
Length	17.3mm
Spatial orientation	angled 90°
Contacts pitch	5.08mm
Type of pin configuration	1x3
Rated voltage	300V
Current rating	15A
Contact plating	tinned
Number of ways	3
Conform to the norm	UL
Contact material	brass
Body material	Poliamid
Flammability rating	UL94V-0
Height	8.4mm, 7.8mm
Depth	12mm
Locking system	friction lock
Kind of connector	male
Korpusz anyaga	PA66

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.287.66
