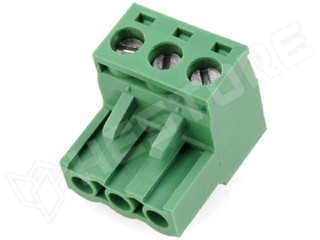

TBW5-3GN (CPF5.08-03P)

Rátolható sorkapocs 90° RM5,08 3P

Manufacturer partno	XY2500F-B(5.08)-3P
Manufacturer	XINYA
Connector	plug
Colour	green
Number of terminals	3
Operating temperature	-40...120°C
Connector variant	pluggable terminal block
Kind of connector	female
Electrical mounting	screw terminal, cage clamp
Mechanical mounting	for cable
Spatial orientation	straight
Contacts pitch	5.08mm
Type of pin configuration	1x3
Rated voltage	250V
Current rating	12A
Contact plating	nickel plated
Number of ways	3
Conform to the norm	UL
Contact material	brass
Body material	PA66
Flammability rating	UL94V-0
Wire size	28AWG...12AWG
Locking system	terminal
Wire cross section	2.5mm²

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.287.69

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 0.394
10+	€ 0.246
50+	€ 0.202
100+	€ 0.194
200+	€ 0.188

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 75
3 workdays	> 50000
