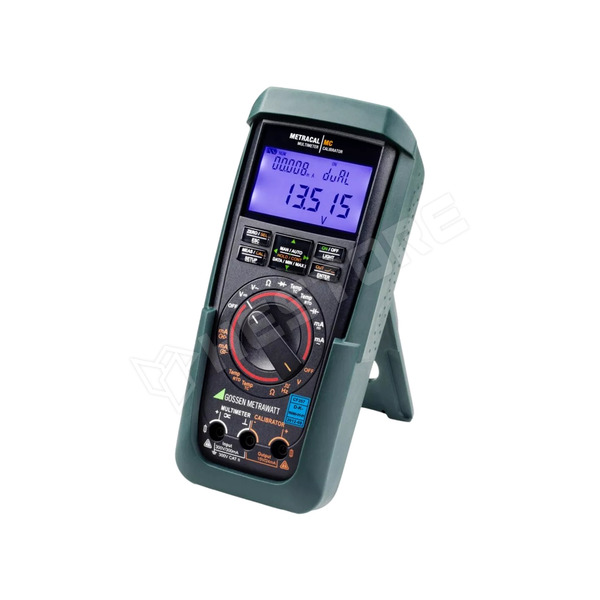

METRACAL MC

Universal calibrator, simulator and multimeter

Manufacturer partno	METRACAL MC
Manufacturer	GOSSEN METRAWATT
Interface	IR (option)
Memory capacity	16Mb
Dimensions	200x87x45mm
IP rating	IP65
Conform to the norm	EN 61010, CAT II 600V
Power supply	battery LR6 AA 1,5V x2
Additional functions	multimeter, calibrator, data logger, simulator
Type of meter	multimeter calibrator
Measuring instrument features	HOLD function, MIN/MAX function, HOLD funkció (kijelző adatainak megtartása), operates with thermocouple types: J, K, T, S, B, E, N, L, U, R, Pt100, PT1000, Ni100, Ni1000, frequency generator, dual mode – simultaneous calibration and measurement
Resistance measuring range	300Ω, 3kΩ, 30kΩ, 300kΩ, 3MΩ, 30MΩ
Resistance measuring accuracy	±(0.1%+5 digit)
Capacitance measuring range	3µF, 30µF, 30nF, 300nF, 300µF
Capacitance measuring accuracy	±(1%+ 6 digit)
DC voltage measuring range	30V, 300V, 3V, 300mV, 60mV
DC voltage measuring accuracy	±(0.05% + 10 digit)
Frequency measuring range	300kHz, 30kHz, 300Hz, 3kHz
Frequency measuring accuracy	±(0.05%+5 digit)
Diode test	1mA @3.2V
Continuity test	acoustic indication, <300Ω
Standard equipment	case, user's manual, hordszíj, calibration certificate DAkkS, test leads ( 3pcs.)
AC current measuring range	300mA, 30mA, 3mA, 0.3mA, 0,3mA
AC voltage measuring range	30V, 300V, 3V, 300mV, 60mV
AC voltage measuring accuracy	±(0.2% + 30 digit)
DC current measuring range	300mA, 30mA, 3mA, 0.3mA, 0,3mA
DC current measuring accuracy	±(0.05% + 15 digit)
AC current measuring accuracy	±(0.015% + 0.005% range), ±(0.5% + 30 digit)
True effective value measurement	True RMS AC
Kind of display used	LCD
Measurement	temperature, resistance, capacitance, DC voltage, AC current, AC voltage, DC current, frequency, 4-20mA current loop, continuity, 0-20mA current loop, 0-24mA current loop
Producer guarantee (months)	36
Software	LabVIEW
Battery/ rechargeable battery	battery LR6 AA 1,5V x2
Kind of calibrator	resistance, frequency, current, RTD, voltage, thermocouple, loop
Current source	0...24mA
Insulation class	0...24mA, ±(0.1%+5 digit), 1mA @3.2V, ±(0.05% + 10 digit), ±(0.2% + 30 digit), ±(0.05% + 15 digit), ±(0.015% + 0.005% range), ±(0.5% + 30 digit), ±(0.05%+5 digit), ±(1%+ 6 digit)
Paraméterek megjelenítése	4,75 digit, (30000)

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.493.46

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 108 703 Ft
5+	1 063 105 Ft
10+	1 044 912 Ft
20+	1 026 729 Ft
50+	999 465 Ft
