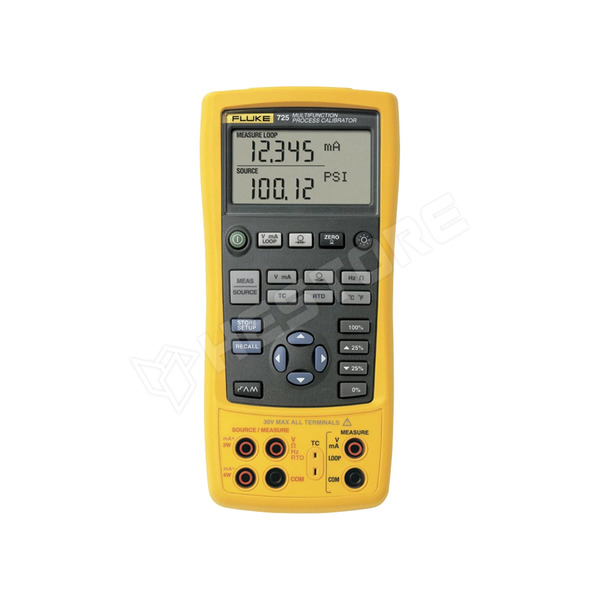

FLUKE-725

Calibrator, pressure, frequency, voltage, current, RTD, thermocouple

Manufacturer partno	FLUKE 725
RoHS	yes
Manufacturer	FLUKE
Protection	short circuit protection
Related items	POM-5900A/POM, POM-6173A, POM-5912B
Dimensions	200x96x47mm
Illumination	yes
Power supply	battery LR6 AA 1,5V x4
Measuring instrument features	operates with 7 types of RTDs: Pt100 (385), Pt200, Pt500, Pt1000 (385), Pt100 (3916), Pt100 (3926), Ni120, automatic and manual step setting, automatic linear sourcing, settings memory, operates with thermocouple types: J, K, T, E, R, S, B, L, N, U, XK, BP, measures and sources frequency within 1 cycle/min. to 10kHz range, 24V, 22mA loop supplying, measures and sources signals simultaneously from 2 channels, measures pressure up to 700 bar using any FLK-700Pxx pressure module
Resistance measuring range	1.5kΩ, 3.2kΩ, 10mΩ...400Ω, 1,5kΩ, 3,2kΩ
Resistance measuring accuracy	±(0.1%+1Ω)
DC voltage measuring range	0...30V, 0...100mV
DC voltage measuring accuracy	±(0,02% + 2 digits)
Standard equipment	FLK-TL75 test leads, crocodile clips FLK-AC72, set of test leads with alligator clips
Type of device	calibrator
DC current measuring range	0...24mA
DC current measuring accuracy	±(0,02% + 2 digits)
Kind of display used	LCD
Measurement	resistance, DC voltage, DC current
Battery/ rechargeable battery	battery LR6 AA 1,5V x4
Kind of calibrator	pressure, frequency, current, RTD, voltage, thermocouple
Voltage source	0...20V
Voltage source accuracy	±(0,02% + 2 digits)
Current source	0...24mA
Current source accuracy	±(0,025% + 1 digit)
Ω szimuláció	15...3200Ω
