- Display: 2.4 inch TFT color screen
- Battery: Built-in 1500mAh rechargeable lithium battery (accessory)
- Charging connector: USB Type-C, +5V
- Sampling: 10MSa/s
- Analog bandwidth: 500KHz
- Input resistance: 1ΜΩ
- Connection method: AC/DC
- Test voltage range: 400V
- Vertical sensitivity (x1): 10mV-10V
- Horizontal base time ranges: 1us-10s
- Trigger mode: Auto / Normal / Single
- Trigger type: Rising edges / Falling edges
- Freeze waveform: Yes
- Automatic measurement: Yes

Transistor tester:
- Transistor: 10<ß>600
- Diode: 0.01...4.5V (on 1-2-3 test points)
- Zener diode: 0.01...32V (on K-A-A test points)
- FET: JFET, MOSFET
- SCRS: switching voltage < 5V
- TRIAK: gate trigger current < 6mA
- Capacitor: 25pF...100mF
- Resistance: 0.01Ω...50ΜΩ
- Inductance: 10uH...1000uH
- Battery voltage measurement: 0.1...4.5 V
- Input voltage: 0...40V
- DS18B20 temperature measurement: 0...85 ℃
- DHT11 humidity measurement: 0...60°C / 5...95%
- Infrared remote control measurement: NEC protocol

Signal generator:
- Sine: 1...10KHz / 0...3.3V / 50%
- Square: 1...100KHz / 3.3V / 50%
- Pulse: 1...100KHz / 3.3V / 0...100%
- Triangle: 1...10KHz / 0...3.3V / 50%
- Saw: 1...10KHz / 0...3.3V / 0...100%
- Direct current: 0...3.3V
- The output of the signal generator in oscilloscope mode is a 1kHz square wave signal

- Device size: 110 x 76 x 30mm

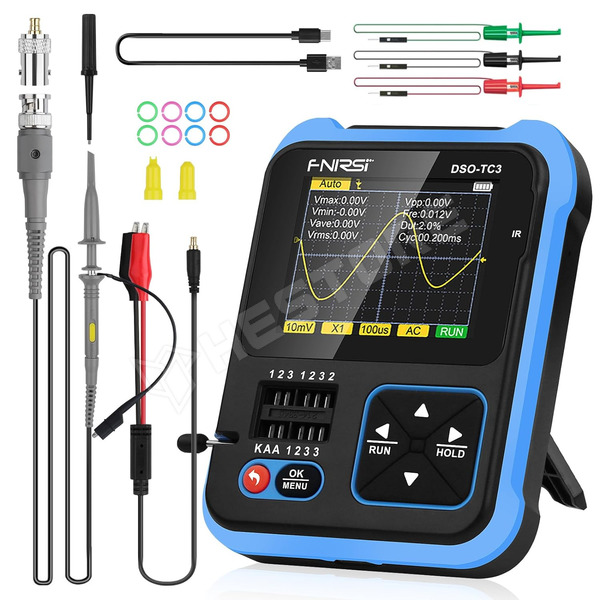

Contents of the box:
- DSO-TC3
- P6100 measuring cable with converter
- 3 test cables with hooks
- crocodile clip test cable
- Type-C cable

In oscilloscope mode, the signal generator outputs a stable 1kHz square wave, meaning that the set waveform cannot be measured.
