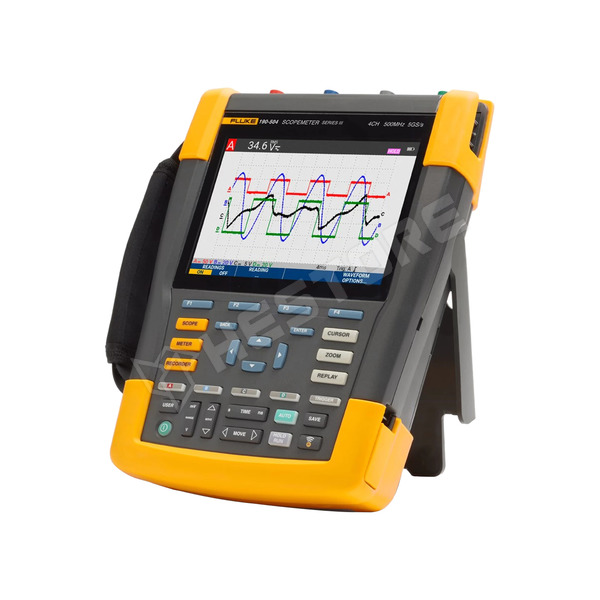

FLK-190-504-III

Scopemeter, color LCD display, 500MHz, 4 channels, 5Gsps, 10kpts/ch, 700ps

Manufacturer partno	FLUKE-190-504-III
Manufacturer	FLUKE
Series	Fluke 190-III
Number of channels	4
Interface	USB
Related items	FLK-BP291
Dimensions	265x192x70mm
IP rating	IP51
Conform to the norm	EN61010 1000V CAT III, EN61010 600V CAT IV
Power supply	rechargeable battery Li-Ion 4800mAh x1
Additional functions	multimeter
Plug variant	EU
Measuring instrument features	impact resistant holster, measurements by means of cursors, mathematical functions: addition, subtraction, multiplication an, FFT analysis, real time clock, szigetelt bemenetek, por- és cseppálló, defined part of displayed signal zoom, Connect-and-View function that ensures stable, reliable and repeatable signal display without operator, waveform trend chart function
Standard equipment	hand strap, mains cable, USB cable, user's manual, FLK-TL175 test leads, test probes VPS421, power supply FLK-BC190/830
Sampling	5Gsps
Type of oscilloscope	scopemeter
Band	500MHz
Trigger	impulse width, rising-edge, falling-edge
Rise time	700ps
Max. input voltage	1kV
Input impedance	1MΩ/14pF
Pollution degree	2
Input sensitivity	2mV/div...100V/div
Memory record length	10kpts/ch
Time base	1n...4s/div
Vertical resolution	8bit
Kind of display used	colour, LCD
Producer guarantee (months)	36
Battery/ rechargeable battery	rechargeable battery Li-Ion 4800mAh x1
Light source efficiency	10kpts/ch
