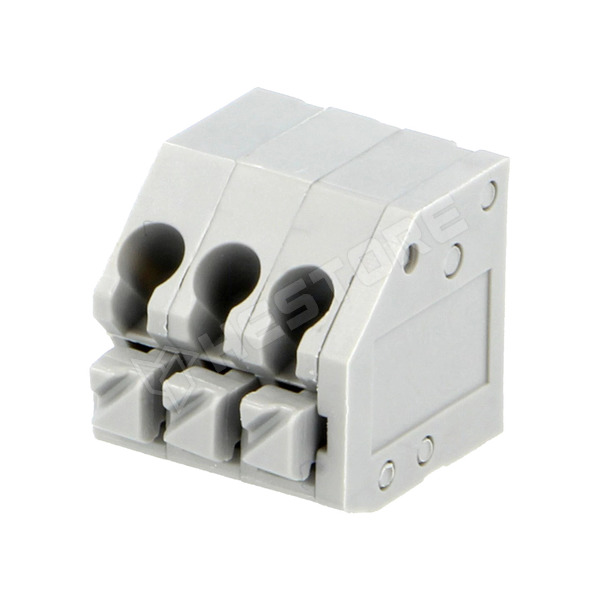

DG250-3.5-03P-11-00A(H)

PCB terminal block, with push button, angled 45°, 3.5mm, Number of ways: 3, 200...750µm2

Manufacturer partno	DG250-3.5-03P-11-00A(H)
RoHS	yes
Manufacturer	DEGSON ELECTRONICS
Connector	terminal, rail
Colour	grey
Length	12mm
Operating temperature	-40...105°C
Connector variant	with push button, PCB terminal block
Electrical mounting	THT, spring clamp
Mechanical mounting	on PCBs
Enclosure material	polyamide 66
Spatial orientation	angled 45°, angled 45°
Contacts pitch	3.5mm
Type of pin configuration	1x3
Rated voltage	400V
Current rating	5A
Contact plating	tinned
Number of ways	3
Conform to the norm	CE, UL, VDE
Contact material	phosphor bronze
Body material	polyamide 66
Flammability rating	UL94V-0
Wire size	22AWG...18AWG, 200...750µm²
Height	11.5mm
Depth	12mm
Wire cross section	200...750µm²
Type of connector	PCB terminal block

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.441.03

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	162 Ft
10+	101 Ft
50+	83,94 Ft
100+	80,48 Ft
200+	78,07 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 200
