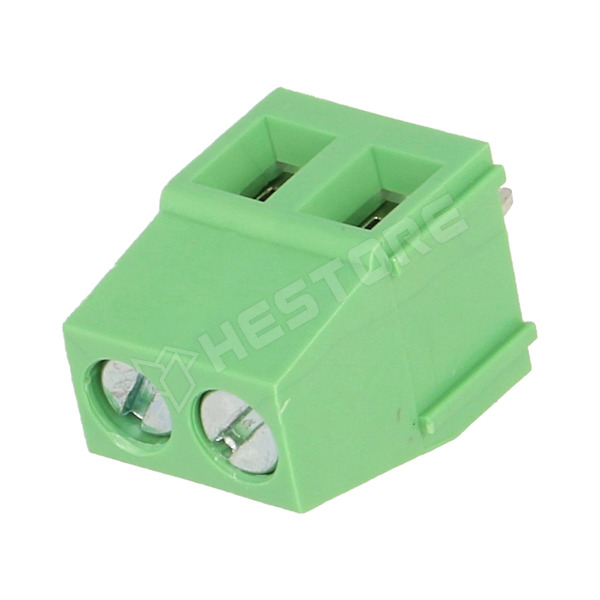

DG128-5.0-02P-14-00A(H)

PCB terminal block, angled, 5mm, Number of ways: 2, 2.5mm², green

DG128-5.0-02P-14-00A(H) / PCB terminal block, angled, 5mm, Number of ways: 2, 2.5mm<sup>2</sup>, green (DG128-5.0-02P-14-00A(H) / DEGSON ELECTRONICS)

Manufacturer partno	DG128-5.0-02P-14-00A(H)
RoHS	yes
Manufacturer	DEGSON ELECTRONICS
Connector	terminal
Colour	green
Length	10mm
Operating temperature	-40...105°C
Connector variant	PCB terminal block
Electrical mounting	THT, screw terminal, cage clamp
Mechanical mounting	on PCBs
Enclosure material	PA66
Spatial orientation	angled
Contacts pitch	5mm
Type of pin configuration	1x2
Rated voltage	250V
Current rating	18A
Contact plating	tinned
Number of ways	2
Conform to the norm	CE, UL, VDE
Contact material	brass
Body material	PA66
Flammability rating	UL94V-0
Wire size	2.5mm², 24AWG...12AWG
Height	14.1mm
Connectors features	assembling possibility
Depth	10.2mm
Wire cross section	2.5mm²
Type of connector	PCB terminal block
