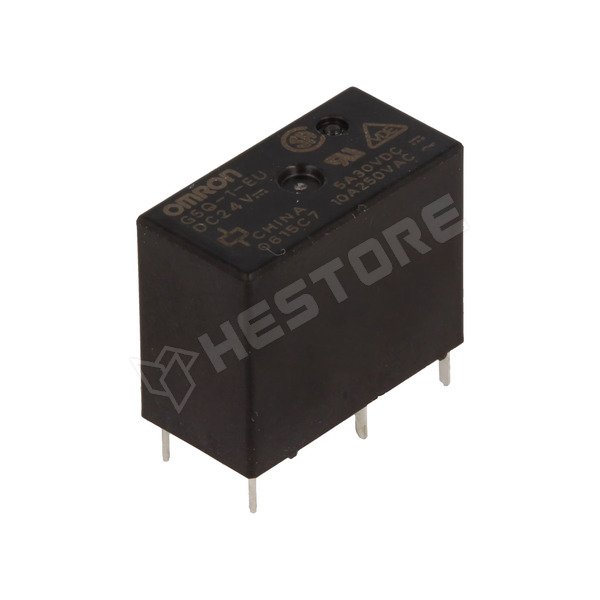

G5Q-1-EU-24VDC

Relay, SPDT, 24V DC, 10A / 250V AC, 5A / 30V DC

Manufacturer partno	G5Q-1-EU 24VDC
RoHS	yes
Manufacturer	OMRON OCB
Mounting	PCB
Terminal pitch	2.54mm
Operating temperature	-40...85°C
Body dimensions	20.3x10.3x15.8mm
Body dimensions	20.3x10.3x15.8mm
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	10A
Switched voltage	max. 277V AC, max. 30V DC
Relay variant	miniature
Coil resistance	1.44kΩ
Operate time	10ms
Release time	5ms
Coil power consumption	400mW
Relay series	G5Q-EU
Contact resistance	100mΩ
Coil current	16.7mA
Enclosure description	standard seal
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	10A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.426.58

Add to favorites

Quantity (pcs):

Packing:
40 pcs / tube

Unit price excl. VAT

1+	715 Ft
5+	526 Ft
10+	497 Ft
20+	478 Ft
40+	459 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 7500
10-15 workdays	> 250
