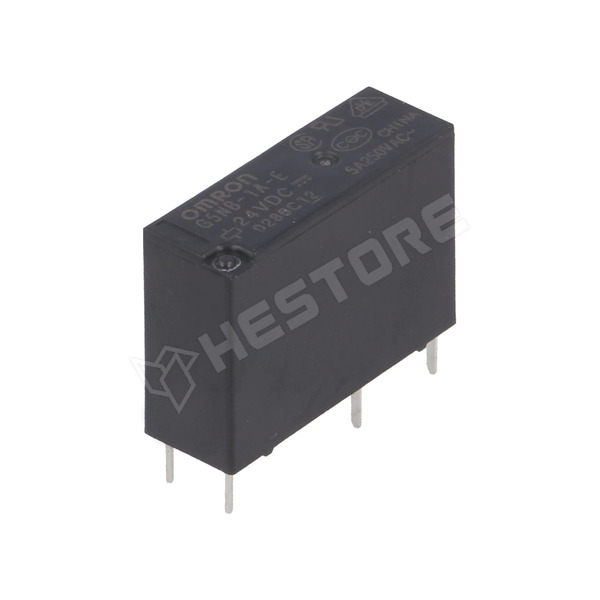

G5NB-1A-E-24VDC

Relé, elektromágneses, SPST-NO, 24V DC, 5A/250V AC, 200mW

Manufacturer partno	G5NB-1A-E 24VDC
Manufacturer	OMRON OCB
Mounting	PCB
Terminal pitch	7mm
Operating temperature	-40...70°C
Body dimensions	20.5x7.2x15.3mm
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	5A
Switched voltage	max. 250V AC, max. 30V DC
Relay variant	miniature
Coil resistance	2.88kΩ
Operate time	10ms
Release time	10ms
Coil power consumption	200mW
Relay series	G5NB
Contact resistance	100mΩ
Coil current	8.3mA
Enclosure description	standard seal
DC contacts rating @R	3A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.427.30

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	915 Ft
5+	718 Ft
10+	685 Ft
20+	663 Ft
50+	640 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 2000
