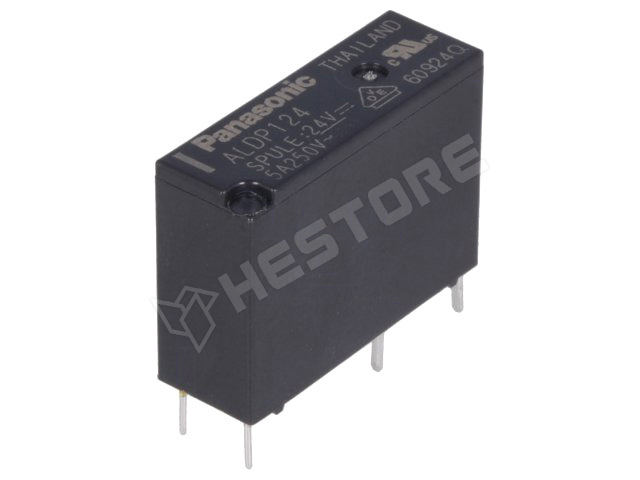

ALDP124

Relé, elektromágneses, SPST-NO, 24VDC; 5A/277VAC; 2,88kΩ

Manufacturer partno	ALDP124
RoHS	yes
Manufacturer	PANASONIC
Mounting	PCB
Operating temperature	-40...85°C
Body dimensions	20.5 x 7.2 x 15.3mm
Mechanical durability	5000000cycles
Contact material	AgNi
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	5A
Switched voltage	max 30V DC, max 277V AC, max 30V DC, max 277V AC
Relay variant	miniature
Coil resistance	2.88kΩ
Coil voltage min.	18V DC
Coil power consumption	200mW
Relay series	ALDP
Coil current	8.3mA
DC contacts rating @R	3A / 30V DC
AC contacts rating @R	5A / 277V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.389.48

Add to favorites

Quantity (pcs):

Packing:
50 pcs / tube

Unit price excl. VAT

1+	542 Ft
5+	360 Ft
10+	334 Ft
20+	318 Ft
50+	303 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 10000
