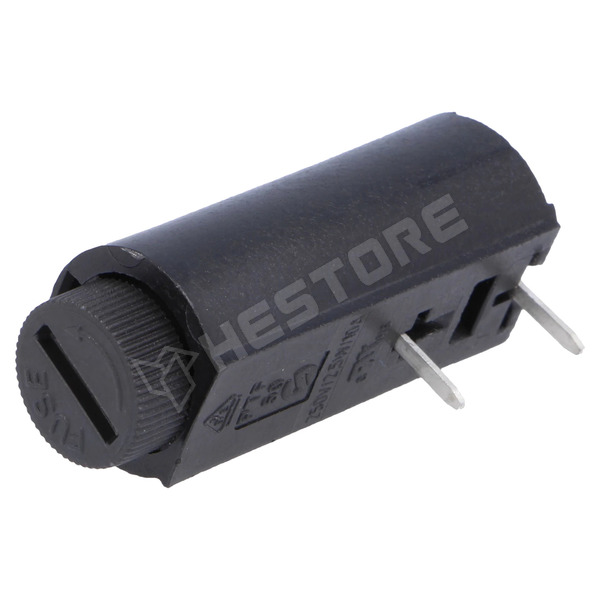

PTF/50

Biztosíték foglalat, 5x20mm

Manufacturer partno	PTF/50
RoHS	yes
Manufacturer	Stelvio Kontek
Colour	black
Mounting	THT
Terminal pitch	10mm
Operating temperature	-30...85°C
Body dimensions	Ø10x33.1mm
Mounting hole diameter	Ø1.3mm
Rated voltage	250V AC
Leads dimensions	len. 5mm
Fuse size	5x20mm
Maximum current	10A
Body material	thermoplastic
Flammability rating	UL94V-0
Contact resistance	5mΩ
Fuses application	cylindrical fuses
Type of fuse accessories	socket
