INA231-M

Name: INA231-M
Brand: HESTORE
SKU: 100.489.82
Availability: InStock

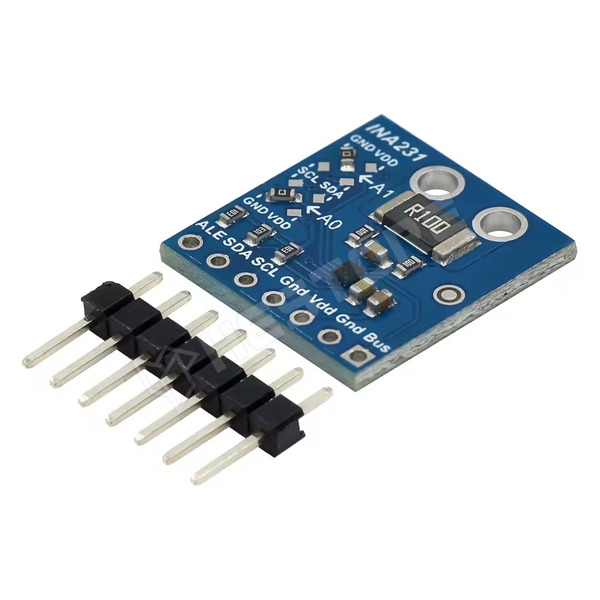

INA231 based bidirectional current and power monitor module, 16bit, I2C

• Supply voltage range: 2.7...5.5V DC
• Current consumption: typical 330µA
• Measurement range (bus voltage): 0...28V DC
• Measurement arrangement: high-side or low-side sensing
• Output data: current (A), voltage (V), power (W)
• Accuracy:
– Gain error max. ±0.5%
– Offset max. ±50µV
• Features:
– Bidirectional current measurement
– Programmable calibration values
– Programmable alarm thresholds (ALERT pin)
– Programmable conversion times
– 16 selectable I²C addresses
• Interface: I²C (1.8, 3.3, 5.0V compatible, max. 400kHz)
• Operating temperature: –40...+125°C
• Dimensions: 18 × 19.4mm

• Note:
- The ALERT output is programmable in case of overvoltage, overcurrent or too high power.

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.489.82

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	964 Ft
5+	765 Ft
10+	731 Ft
20+	709 Ft
50+	684 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
10-15 workdays	> 10000
