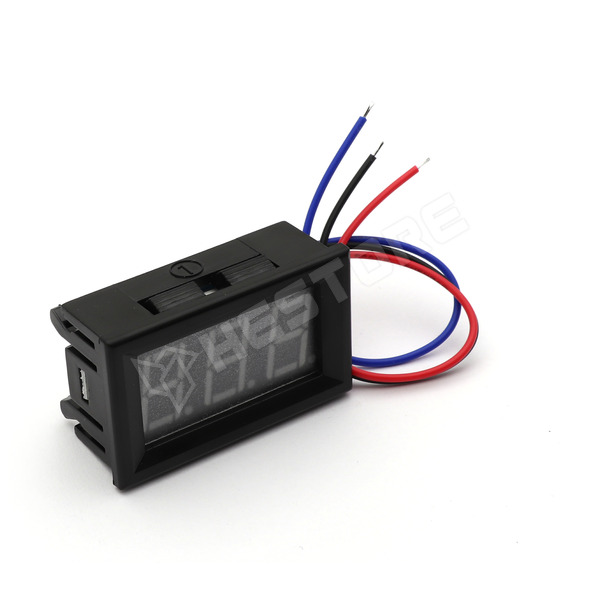

H27V3-G

DC voltmeter module, red

Operating temperature	-10...65°C
Dimensions	48 x 29 x 22mm
Leads	3 leads
Type of display used	7-segment
Cable length	140mm
Supply current	23mA
DC voltage measuring range	0...30V DC
DC voltage measuring accuracy	0...10V ±0.1V, 10...30V ±0.3V
Sampling	300ms
Internal resistance	100kΩ

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.423.02

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 029 Ft
5+	1 787 Ft
10+	1 736 Ft
20+	1 696 Ft
50+	1 645 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
10-15 workdays	> 2000
