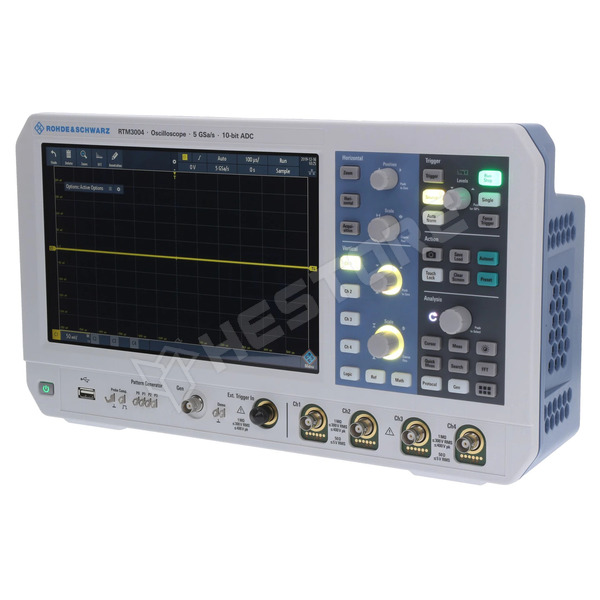

RTM-COM4

Oscilloscope, 4 channels, 1GHz

Manufacturer partno	RTM-COM4
Manufacturer	ROHDE & SCHWARZ
Weight	3.3kg
Series	RTM3000
Number of channels	4
Interface	USB, LAN
Dimensions	390x220x152mm
Power supply	100...240V AC, 50...60Hz
Additional functions	arbitrary waveform generator
Measuring instrument features	frequency response analysis, protocols analyse: I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN, I2S LJ/RJ/TDM, MIL-1533, ARINC 429, spectrum analysis, segmented memory and previous waveforms stored, power analysis
Standard equipment	mains, oscilloscope probe (1 per channel), options: RTM-B1, RTM-B6, RTM-K1, RTM-K2, RTM-K3, RTM-K5, RTM-K6, RTM-K7 RTM-K15, RTM-K36, RTM-K18, RTM-K31
Sampling	2,5Gsps, 5Gsps interleaved
Type of oscilloscope	mixed signal
Band	1GHz
Trigger	video signal, rising-edge, falling-edge, risetime, runt, pattern width, serial protocol
Rise time	350ps
Max. input voltage	300V
Input impedance	1MΩ/14pF
Input sensitivity	500µV/div...10V/div
Memory record length	400Mpts
Time base	0,5n...500s/div
Vertical resolution	10bit
Trigger modes	normal, automatic, single
Input coupling	AC, DC, GND
Trigger coupling	DC, AC, highpass
Kind of display used	colour, touch screen, WXGA 10,1" (1280x800)
Producer guarantee (months)	36

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.417.93

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	10 941 191 Ft
5+	10 667 510 Ft
10+	10 485 140 Ft
20+	10 302 781 Ft
50+	10 029 250 Ft
