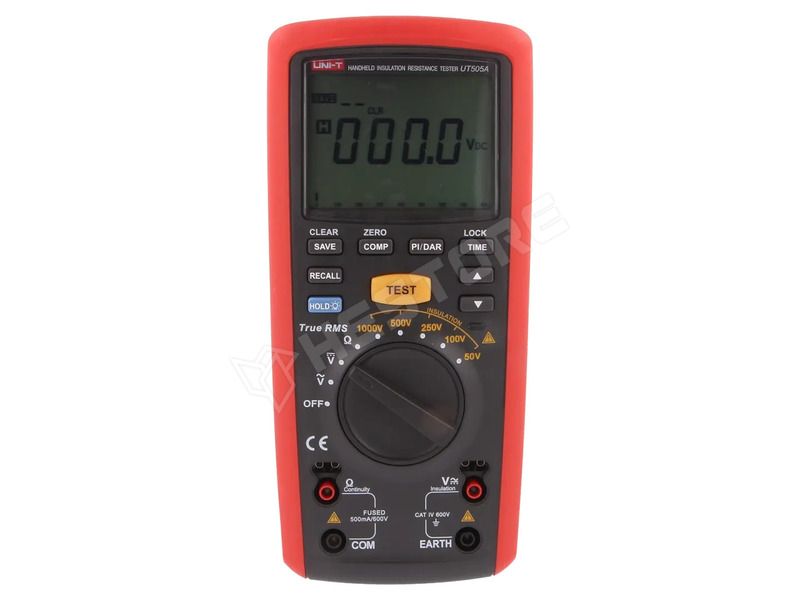

UT505A

Handheld insulation resistance tester, 0.01MΩ...20GΩ,

Manufacturer partno	UT505A
Manufacturer	UNI-T
Weight	630g
Body dimensions	103x225x59mm
Test voltage	50V/100V/250V/500V/1000V
Power supply	6 batteries 1,5V LR6 (AA)
Type of meter	insulation resistance
Measuring instrument features	HOLD function, automatic power-off, low battery indicator, autoranging, 99 measurement memory, automatic circuit discharging after insulation resistance measurement
DC voltage measuring range	600V
Standard equipment	battery, test leads, case, test probes, crocodile clips
AC voltage measuring range	600V
True effective value measurement	True RMS
Kind of display used	bargraph, with a backlit, LCD (6000)
Measurement	DC voltage, AC voltage, insulation resistance, insulation resistance
Mérőfeszültség	50V/100V/250V/500V/1000V
Insulation resistance measuring ranges	0,01M...50M/100M/200M/500M/2000M/10G/20GΩ
