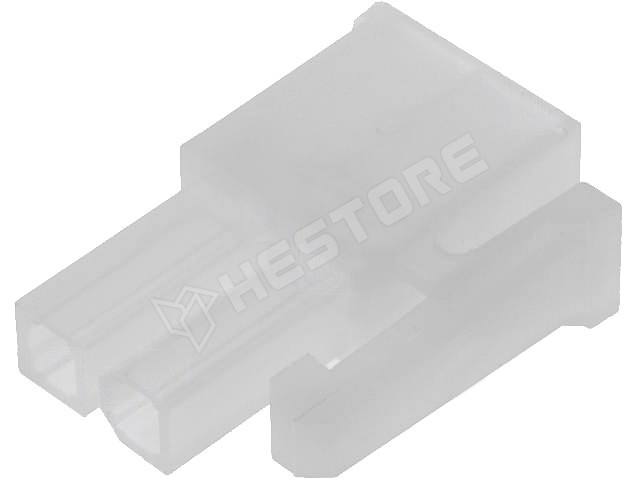

H5150-02PDW000R

N42W power connector housing, female, 4.2mm, 2pin

Manufacturer partno	H5150-02PDW000R
RoHS	yes
Manufacturer	HSM
Connector	plug
Operating temperature	-25...85°C
Connector variant	w/o contacts, wire-wire/PCB
Kind of connector	female
Number of pins	2
Mechanical mounting	for cable
Enclosure material	polyamide
Contacts pitch	4.2mm
Type of pin configuration	2x1
Rated voltage	600V
B dimension	5.6mm
Flammability rating	UL94V-2
Connector series	N42W
Locking system	terminal
Connector variant	w/o contacts

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.410.38

Add to favorites

Quantity (pcs):

Packing:
1000 pcs / bag

Unit price gross (netto)

1+	208 Ft (164 Ft +VAT)
5+	130 Ft (102 Ft +VAT)
10+	102 Ft (80,44 Ft +VAT)
20+	87,52 Ft (68,91 Ft +VAT)
50+	77,53 Ft (61,05 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 150
