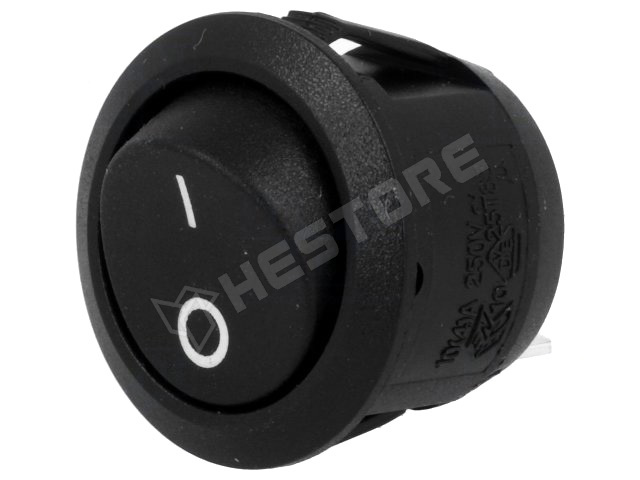

R13-112A-02-BB-2D

Billenőkapcsoló, OFF-ON, 10A 250V AC

Manufacturer partno	R13-112A-02-BB-2D
RoHS	yes
Manufacturer	SCI
Operating temperature	-20...85°C
Shape	round
Leads	4,8x0,8mm connectors
Type of switch	ROCKER
Stable positions number	2-position
Switching method	OFF-ON
Contacts configuration	SPST
Mounting hole diameter	20.2mm
Max. contact resistance:	50mΩ
Flammability rating	UL94V-2
Body colour	black
Electrical life	6000cycles
Actuator colour	black
Button marking	I-O
Manufacturer series	R13-112-AC
Backlight colour	none
Panel thickness	max 3mm
AC contacts rating @R	10A / 250V AC
Összes pozíciók száma	2
Light	none
Korpusz anyaga	Poliamid

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.391.55

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	404 Ft
5+	253 Ft
10+	228 Ft
20+	214 Ft
50+	202 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 3000
