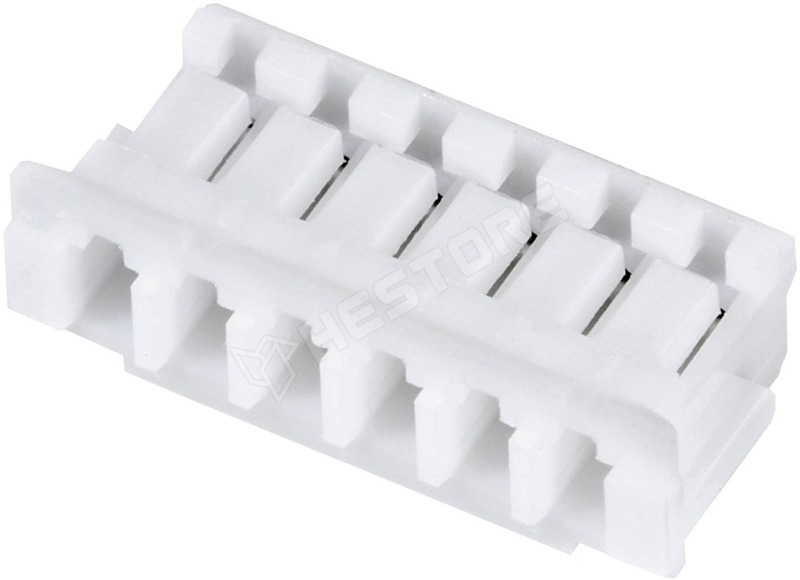

ZHR-6

Connector housing, 6p, female, 1.5mm

RoHS	yes
Manufacturer	JST
Connector	plug
Pole	6
Operating temperature	-25...85°C
Connector variant	wire-board, w/o contacts
Kind of connector	female
Number of pins	6
Mechanical mounting	for cable
Contacts pitch	1.5mm
Type of pin configuration	1x6
Rated voltage	50V
Current rating	1A
Connector series	ZH
Kind of connector	female

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.386.37

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	€ 0.242
5+	€ 0.151
10+	€ 0.098
20+	€ 0.071
50+	€ 0.054

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 250
3 workdays	> 25000

Any questions?

Recommended accessory products

SZH-003T-P0.5
Crimpable contact, female, phosphor-bronze, tinned, 0.032...0.08mm2, ZH, 1A

SZH-002T-P0.5
Crimpable contact, female, phosphor-bronze, tinned, 0.08...0.13mm2, ZH, 1A
