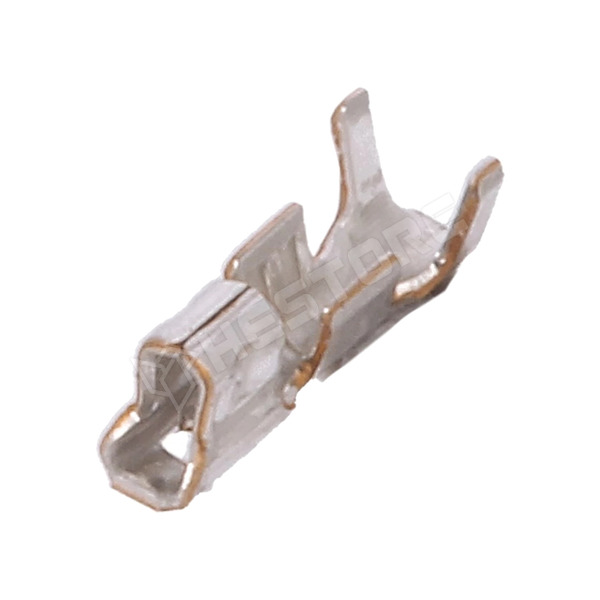

SZH-003T-P0.5

Crimpable contact, female, phosphor-bronze, tinned, 0.032...0.08mm2, ZH, 1A

Manufacturer partno	SZH-003T-P0.5
RoHS	yes
Manufacturer	JST
Connector	contact
Connector variant	wire-board
Kind of connector	female
Electrical mounting	crimped
Mechanical mounting	for cable
Contacts pitch	1.5mm
Current rating	1A
Contact plating	tinned
Contact material	phosphor bronze
Max. voltage	50V
Wire size	32AWG...28AWG
Connector series	ZH
Wire cross section	0.032...0.08mm²
Type of connector	wire-board
Vezeték metszete	0.032...0.08mm²
Vezeték mérete	32AWG...28AWG
