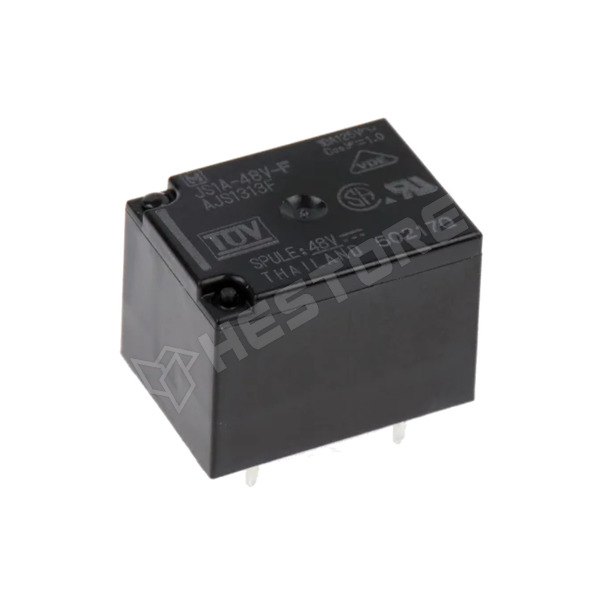

JS1A-48V-F
Relay, SPST, 48V DC, 10A / 250V AC, 5A / 30V DC
| Manufacturer partno | JS1A-48V-F |
|---|---|
| RoHS | yes |
| Manufacturer | PANASONIC |
| Case | JS |
| Current | 10A |
| Coil | 48V DC |
| Contact | SPST |
| Voltage | 250V AC |
| Mounting | PCB |
| Operating temperature | -40...105°C |
| Body dimensions | 22x16x16mm |
| Body dimensions | 22x16x16mm |
| Contact material | AgSnO2 |
| Contacts configuration | SPST |
| Type of relay | electromagnetic |
| Rated coil voltage | 48V DC |
| Contact current max. | 10A |
| Switched voltage | max. 100V DC, max. 250V AC |
| Relay variant | miniature |
| Coil resistance | 6.4kΩ |
| Coil power consumption | 360mW |
| Relay series | JS |
| Coil current | 7.5mA |
| DC contacts rating @R | 5A / 30V DC |
| AC contacts rating @R | 10A / 250V AC |
