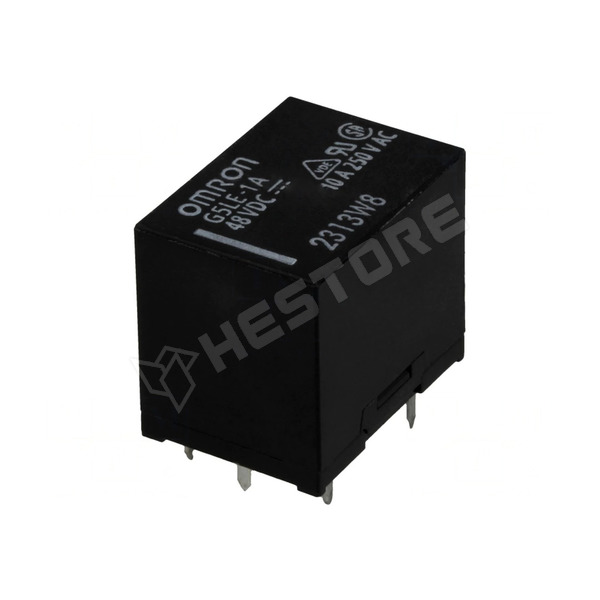

G5LE-1A 48VDC

Relay, SPST-NO, 48V DC, 10A / 240V AC, 8A / 30V DC

Manufacturer partno	G5LE-1A 48VDC
RoHS	yes
Manufacturer	OMRON OCB
Mounting	PCB
Operating temperature	-40...85°C
Body dimensions	22.5x16.5x19mm
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	48V DC
Contact current max.	10A
Switched voltage	max. 250V AC, max. 125V DC
Relay variant	miniature
Coil resistance	5.76kΩ
Operate time	10ms
Release time	5ms
Coil power consumption	400mW
Relay series	G5LE
Contact resistance	100mΩ
Coil current	8.33mA
Enclosure description	standard seal
DC contacts rating @R	8A / 30V DC
AC contacts rating @R	10A / 240V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.448.16

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	803 Ft
5+	611 Ft
10+	580 Ft
20+	560 Ft
50+	539 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 150

Any questions?

Alternatives, similar/substitute products

G5LE-1-48DC
Relay, SPDT, 48V DC, 10A / 120V AC, 8A / 30V DC
