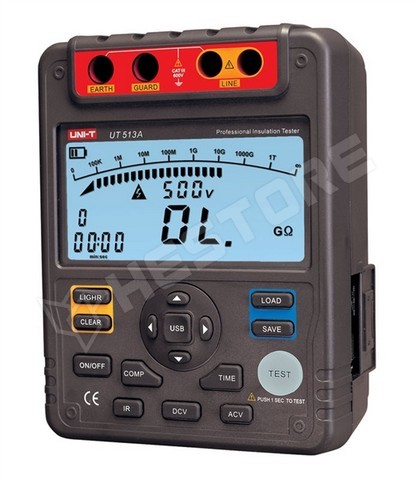

UT513A (UNI-T)

Szigetelés vizsgáló mérőkészülék 500kOhm , USB

Manufacturer partno	UT513A
Manufacturer	UNI-T
Body dimensions	202x155x94mm
Interface	USB
Protection	anti-overload
Test voltage	500V DC @ 0Ω...20GΩ, 1kV DC @ 0Ω...40GΩ, 2.5kV DC @ 0Ω...100GΩ, 5kV DC @ 0Ω...1000GΩ
Conform to the norm	EN61010 600V CAT III
Power supply	battery LR14 1,5V x8
Type of meter	insulation resistance, insulation resistance
Measuring instrument features	automatic power-off, low battery indicator, autoranging, 18 measurements memory
DC voltage measuring range	600V, 1...30V
DC voltage measuring accuracy	±(2% + 3 digits)
Continuity test	acoustic signal for R<30Ω
Standard equipment	test leads, power supply, USB cable, hard case, crocodile clips
AC voltage measuring range	600V, 1...30V
Pollution degree	2
Weight with battery	2kg
AC voltage measuring accuracy	±(2% + 3 digits)
Bargraph	30 segm.
Kind of display used	bargraph, with a backlit, LCD (9999)
Measurement	DC voltage, AC voltage, insulation resistance
Mérőfeszültség	500V DC @ 0Ω...20GΩ, 1kV DC @ 0Ω...40GΩ, 2.5kV DC @ 0Ω...100GΩ, 5kV DC @ 0Ω...1000GΩ
Insulation resistance measuring ranges	500k...1000GΩ
Insulation resistance measuring accuracy	±(3% + 5 digits)
Battery/ rechargeable battery	battery LR14 1,5V x8

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.337.22

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	104 839 Ft
5+	102 067 Ft
10+	100 303 Ft
20+	98 549 Ft
50+	95 927 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 100000
