UT-512 (UNI-T)

Szigetelés vizsgáló mérőkészülék 500kOhm - 100GOhm, USB

Manufacturer partno	UT512
RoHS	no
Manufacturer	UNI-T
Body dimensions	202x155x94mm
Interface	USB
Protection	anti-overload
Body dimensions	202x155x94mm
Test voltage	1000V DC (range 2M...10GΩ), 1500V DC (range 5M...20GΩ), 2500V DC (range 10M...100GΩ), 500V DC (range 0.5M...5GΩ)
Conform to the norm	EN61010 600V CAT III
Power supply	8 batteries 1,5V LR14
Type of meter	insulation resistance
Measuring instrument features	automatic power-off, low battery indicator, autoranging, 4 methods of insulation resistance measurement: continuous, during determined time, polarization index and comparative measureme, 18 measurements memory
DC voltage measuring range	1...30/600V
DC voltage measuring accuracy	±(2% + 5 digits)
Continuity test	acoustic signal for R<30Ω

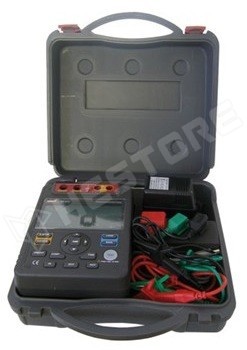

Standard equipment	test leads, hard case, crocodile clips
AC voltage measuring range	1...30/600V
Pollution degree	2
Weight with battery	2kg
AC voltage measuring accuracy	±(2% + 5 digits)
Bargraph	29 segm.
Kind of display used	LCD (9999) 19mm
Measurement	DC voltage, AC voltage, insulation resistance
Mérőfeszültség	1000V DC (range 2M...10GΩ), 1500V DC (range 5M...20GΩ), 2500V DC (range 10M...100GΩ), 500V DC (range 0.5M...5GΩ)
Insulation resistance measuring ranges	0,1M...500k/100M/5G/10G/20G/100GΩ
Insulation resistance measuring accuracy	±(3% + 5 digits)

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.330.03

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	58 472 Ft
5+	56 859 Ft
10+	55 868 Ft
20+	54 887 Ft
50+	53 425 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 100000
