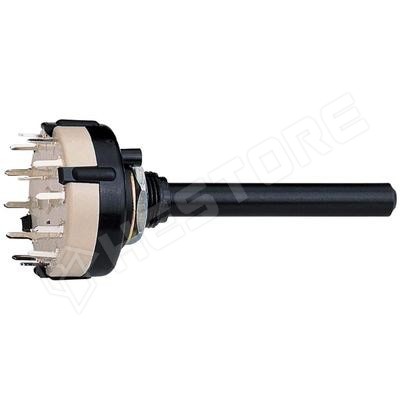

PCK-1031 = DS3

Rotary switch, 3 x 4 positions, for PCB

RoHS	no
Manufacturer	CANAL ELECTRONIC
Diameter	28.2mm
Operating temperature	-10...60°C
Length	52.5mm
Leads	for PCB
Min. insulation resistance	100mΩ, 100MΩ
Mechanical durability	10000cycles
Shaft diameter	6mm
Shaft surface	smooth
Shaft length	30mm
Type of switch	rotary
Stable positions number	4-position
DC contacts rating	1 A / 30 VDC
Poles number	3
Indexed positions	30°
Number of positions	4
Fastening thread	M10x0.75
Switching method	BBM, BBM (non-shorting)
AC contacts rating	0.3 A / 125 VAC
Max. contact resistance:	25mΩ
DC contacts rating @R	1A / 30V DC
AC contacts rating @R	0.3A / 125V AC
Összes pozíciók száma	4

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.328.21

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	804 Ft
5+	612 Ft
10+	581 Ft
20+	561 Ft
50+	540 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 500
