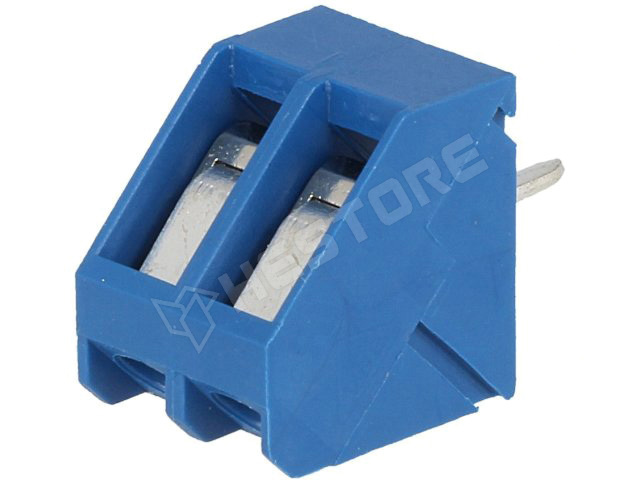

DG330-5.0-2P12

Name: DG330-5.0-2P12
Brand: DEGSON ELECTRONICS
SKU: 100.308.91
Availability: InStock

Sorkapocs 45° lift 2,5mm2 5mm 2P

Orientáció : 45 fokos
Csavaros szorító
Érintkező raszter : 5 mm
Névleges áram : 15 A
Érintkező anyaga : sárgaréz, ónozott
Ház anyaga : poliamid PA66
Névleges feszültség : 300 V
Üzemi hőmérséklet: -40 ... 105 °C
Éghetőségi fokozat : UL94V-0
Megfelelőség : CE
Szín : kék
Csatlakozó tulajdonságok: sorolható
Magasság: 12,5 mm
Mélység: 12,5 mm
Max. vezetékmetszet : 2,5 mm²

RoHS	yes
Manufacturer	DEGSON ELECTRONICS
Connector	terminal
Colour	blue
Pole	2
Orientation	45°
Pitch	5.0
Gender	terminal block
Operating temperature	-40...105°C
Connector variant	terminal block, PCB terminal block
Electrical mounting	THT, screw terminal, cage clamp
Mechanical mounting	on PCBs
Length	10mm
Spatial orientation	angled 45°
Contacts pitch	5mm
Type of pin configuration	1x2
Rated voltage	300V
Current rating	15A
Contact plating	tinned
Number of ways	2
Conform to the norm	CE, UL, VDE
Contact material	brass
Body material	Poliamid
Flammability rating	UL94V-0
Wire size	22...12AWG
Height	12.5mm
Connectors features	assembling possibility
Depth	12.5mm
Wire cross section	2.5mm²
Max cable section	2.5mm²
Korpusz anyaga	PA66

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.308.91

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	194 Ft
5+	121 Ft
10+	99,13 Ft
20+	87,27 Ft
50+	78,93 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 75
3 workdays	> 7500
