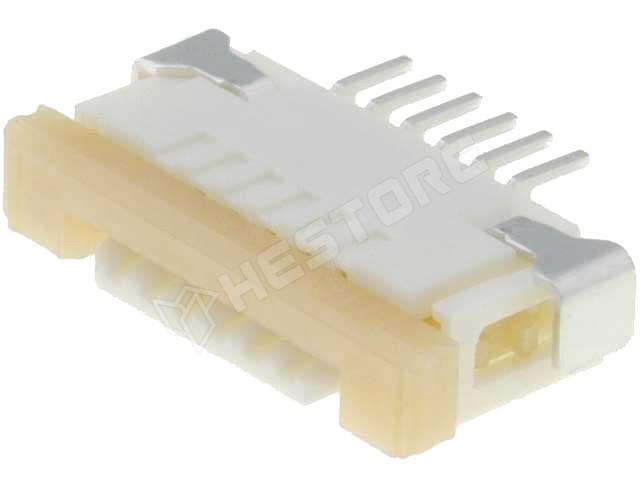

M-52207-1633

FFC/FPC csatlakozó 16 pólus vízszintes, felső érintkezők

Manufacturer partno	MX-52207-1633
RoHS	yes
Manufacturer	MOLEX
Operating temperature	-30...85°C
Connector variant	FFC / FPC, ZIF, top contacts, FFC (FPC)
Number of pins	16
Electrical mounting	SMT
Spatial orientation	horizontal
Contact plating	tinned
Ribbon cable pitch	1mm
Maximum current	1A
Contact material	phosphor bronze
Max. contact resistance:	20mΩ
Max. voltage	125V

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: Molex, LLC
Postal address: 2222 Wellington Court, Lisle, IL 60532, USA
Electronic address: https://www.molex.com/

Part.No: 100.285.22

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	805 Ft
5+	613 Ft
10+	582 Ft
20+	562 Ft
50+	541 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 2500
