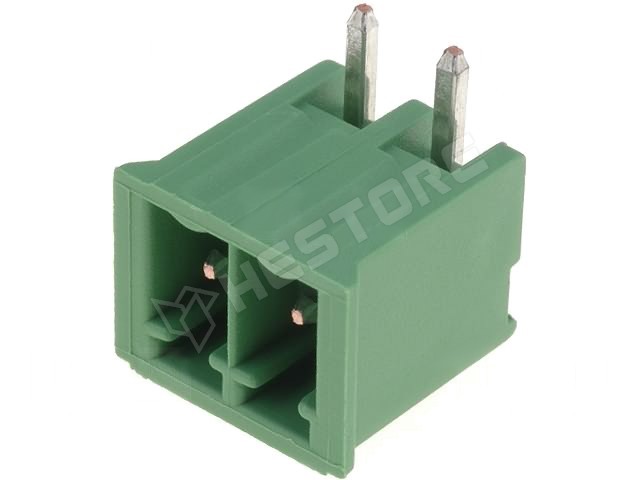

TBG3.5KW-2

Sorkapocs, 90° M3,5 2P zárt

RoHS	yes
Manufacturer	NINIGI, TE Connectivity
Connector	socket
Colour	green
Pole	2
Orientation	90°
Pitch	3.5
Gender	papa
Operating temperature	-40...105°C
Connector variant	pluggable terminal block
Kind of connector	male
Number of pins	2
Electrical mounting	THT
Mechanical mounting	on PCBs
Length	12.5mm
Spatial orientation	angled 90°
Contacts pitch	3.5mm
Type of pin configuration	1x2
Rated voltage	300V
Current rating	11A
Contact plating	tinned
Number of ways	2
Conform to the norm	UL
Contact material	phosphor bronze
Body material	Poliamid
Flammability rating	UL94V-0
Height	7.3mm
Depth	9.2mm
Locking system	friction lock
Kind of connector	male
Korpusz anyaga	Poliamid

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.266.38

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	313 Ft
5+	195 Ft
10+	172 Ft
20+	159 Ft
50+	148 Ft
