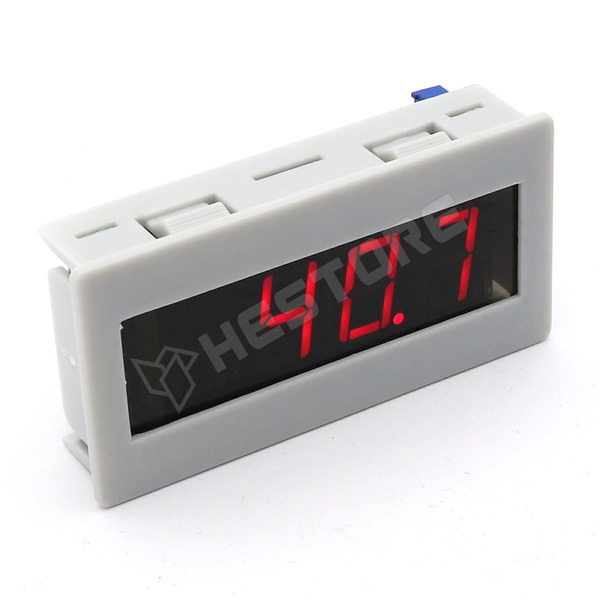

PM3DC

Panelműszer, 3,5 digit, 72×35×15 mm

RoHS	no
Weight	32g
Mounting	snap fastener
Dimensions	72 x 36 x 16mm
Mounting hole diameter	68 x 33mm
Type of display used	LED 3,5 digit 14mm
Power supply	5V DC
Supply current	60mA
Type of meter	panel DC voltage meter
Measuring instrument features	measures DC voltage, "1" overflow indicator
DC voltage measuring range	0...200mV
DC voltage measuring accuracy	±0,5%
Sampling	2.5x/s
Internal resistance	100MΩ
Measurement	DC voltage

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.255.90

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	7 169 Ft
5+	6 716 Ft
10+	6 581 Ft
20+	6 456 Ft
50+	6 279 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 150
