DISP2.4-NTSC-PAL-KIT

Name: DISP2.4-NTSC-PAL-KIT
Brand: HESTORE
SKU: 100.489.91
Availability: InStock

2.4" TFT-LCD display with driver panel, NTSC/PAL monitor (Mini service TV without tuner), 4:3, 480 x 234, 12V DC, RCA composite video input

• Power supply: 12V DC (standard DC5.5×2.1mm connector)
• Power consumption: ≤1.5W
• Input connectors: 1 × RCA (video, no audio)
• Screen size: 2.4" TFT-LCD
• Resolution: 480×234 pixels
• Video system: NTSC/PAL auto switching
• Aspect ratio: 4:3
• Active image size: 45.75 × 35.06mm
• Average brightness: 250cd/m²
• Contrast ratio: 200:1
• Response time: 25ms
• Dimensions:
- Display: 55.15 x 47.5mm
- Driver board: 50 x 35mm
- Without tuner

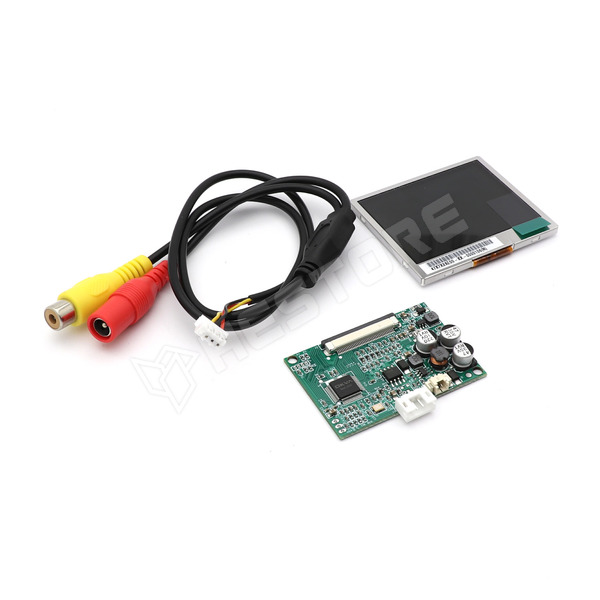

Package contents:
• 1 × 2.4" TFT-LCD display module
• 1 x Driver board
• 1 × RCA video input + 12V DC power connector (pre-installed)

Note:
• Suitable for monitoring, debugging, intercom systems, repair projects and DIY modeling.
• The kit does not include an audio input or speaker.
