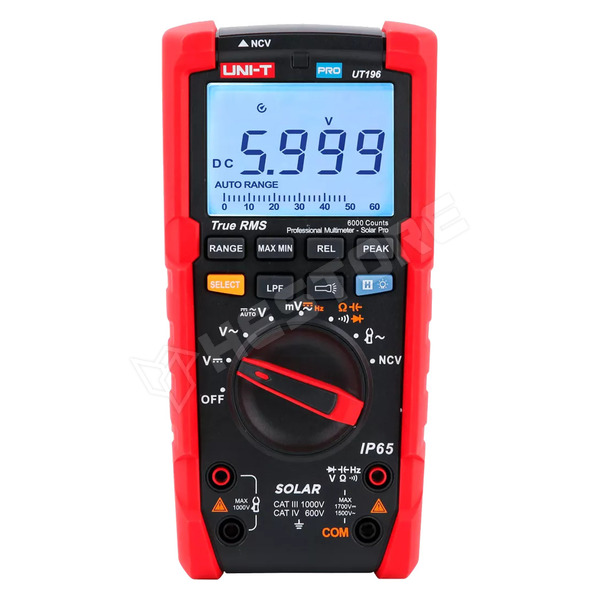

UT196

Digital multimeter, for solar panels, IP65, True RMS

Manufacturer partno	UT196
Manufacturer	UNI-T
Operating temperature	0...40°C
Illumination	yes
IP rating	IP65
Conform to the norm	CAT IV 600V, EN 61010, CAT III 1000V
Power supply	battery 6F22 9V x1
Type of meter	digital multimeter
Measuring instrument features	HOLD function, automatic power-off, autoranging, MIN/MAX/REL function, contactless voltage detector, built-in torch, low-pass filter
Resistance measuring range	600Ω, 60MΩ, 6kΩ, 60kΩ, 600kΩ, 6MΩ
Resistance measuring accuracy	±(0.8%+2 digit)
Capacitance measuring range	600nF, 6µF, 60mF, 60nF, 6mF, 600µF, 60µF
Capacitance measuring accuracy	±(1.9%+ 5 digit)
DC voltage measuring range	600V, 60V, 600mV, 6V, 1.7kV
DC voltage measuring accuracy	±(0.2% + 5 digit)
Frequency measuring range	60Hz...1MHz
Frequency measuring accuracy	±(0.08%+4 digit)
Diode test	3V, yes
Continuity test	acoustic indication, <10Ω
Standard equipment	test leads
AC voltage measuring range	600V, 60V, 1.5kV, 600mV, 6V, 1,5kV
Pollution degree	2
AC voltage measuring accuracy	±(0,8% + 3 digits)
Resistance to	fall from 2m height
Bargraph	yes
True effective value measurement	True RMS
Measuring instruments application	photovoltaics, for solar panels
Kind of display used	LCD
Measurement	resistance, capacitance, DC voltage, AC voltage, frequency
Dimensions (W x H x D)	195x95x58mm
Battery/ rechargeable battery	battery 6F22 9V x1
