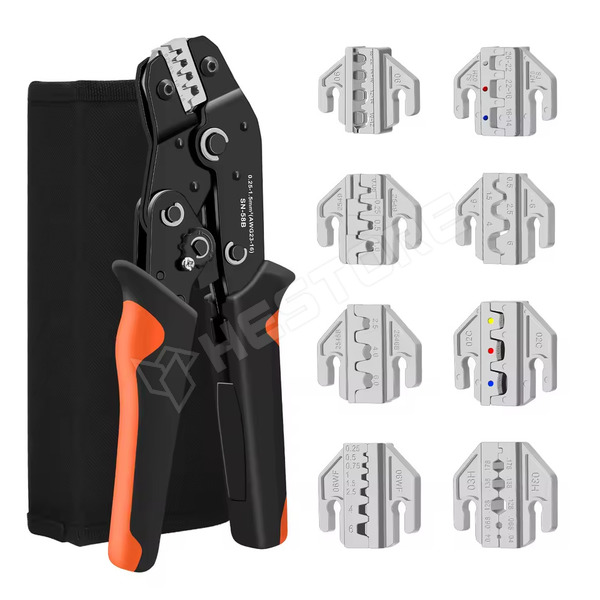

The set comes in a zippered case.
Kit size: 220x 105 x 50mm
Kit weight: 700g
Includes Allen key for jaw change

Pliers:
Dimensions: 195 x 65mm
Weight: 355g

Jaws:

SN-58B
Crimpable contacts (JST, MOLEX), terminals, lugs

4 sizes:
- 0.25mm² - AWG26-24
- 0.5mm² -AWG22-20
- 1.0mm² - AWG 20-18
- 1.5mm² - AWG18-16

Crimping surface width: 7mm (all sizes)

SN-02C
For insulated terminals, lugs

3 sizes:
- 0.25mm² - AWG26-24
- 1.5mm² -AWG18-16
- 2.5mm² - AWG16-14

Crimping surface width: 9mm (all sizes) size)

SN-6
For non-insulated terminals, lug terminals

5 sizes:
- 0.5mm² - AWG20-18
- 1.5mm² -AWG18-16
- 2.5mm² - AWG16-14
- 4mm² - AWG14-12
- 6mm² - AWG12-10

Crimping surface width: 4mm (all sizes)

SN-2549
For wire to board connectors (JST, MOLEX)

4 sizes:
- 0.08mm² - AWG28-26
- 0.25mm² - AWG26-24
- 0.5mm² - AWG22-20
- 1.0mm² -AWG20-17

Crimping surface width: stepped:
- 3.2mm (0.08)
- 4.0mm (0.25)
- 5.0mm (0.5)
- 7.0mm (1.0)

SN-03H
For RF / Coaxial Connectors

5 sizes:
1.0mm - 0.178" (RG174, RG178)
1.72mm - 0.138"
3.25mm - 0.128" (SMA, SMB)
3.84mm - 0.068"
4.5mm - 0.04"

Crimping Face Width: 2 sizes:
- 8.0mm (0.178", 0.138", 0.128")
- 1.9mm (0.068", 0.04")

SN-2546B
Solar Connectors (MC4)

3 sizes:
- 2.5mm² - AWG16-14
- 4mm² - AWG14-12
- 6mm² - AWG12-10

Crimping surface width: 6mm (all sizes)

SN-06
For bare terminals, lug terminals

4 sizes:
- 0.5mm² - AWG18-22
- 1.0...1.5mm² -AWG14-18
- 2.5mm² - AWG12-14
- 4-6mm² - AWG10-12

Crimping surface width: Stepped:
- 4.6mm (0.5-1.5)
- 5.6mm (2.5)
- 6.4mm (4-6)

SN-06WF
For ferrules

6 sizes:
- 0.25 - 0.5mm² - AWG20-24
- 0.75mm² -AWG18-20
- 1.0mm² - AWG16-18
- 1.5 - 2.5mm² -AWG14-16
- 4mm² - AWG12-14
- 6mm² - AWG10-12

Crimping surface width: 10mm (all sizes)


SN-02H
For insulated splice sleeves

3 sizes:
- 0.25-1.0mm² - AWG26-22
- 1.0 - 1.5mm² - AWG22-16
- 1.5 - 2.5mm² - AWG16-14

Crimping surface width: 5mm (all sizes)
