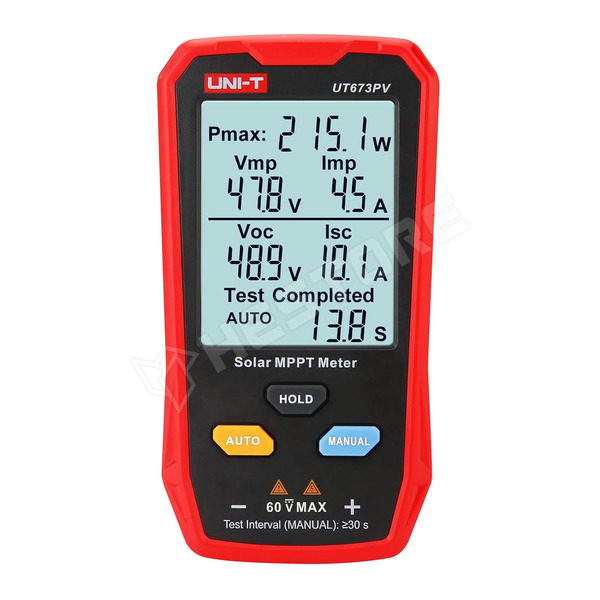

UT673PV

Name: UT673PV
Brand: UNI-T
SKU: 100.485.40
Availability: InStock

MPPT solar power meter, Pmax, Vmp, Imp, Voc, Isc

» Product available for pre-order, not yet in stock

UT673PV / MPPT solar power meter, Pmax, Vmp, Imp, Voc, Isc (UNI-T)

UT673PV Solar MPPT Meter can measure the maximum power of solar module rapidly. It has the ability to measure maximum power (Pmax) of solar module, open-circuit voltage (Voc), and short-circuit current (Isc) at the same time and display all parameters on the screen.

RoHS	yes
Manufacturer	UNI-T
Operating temperature	0...40°C
Protection	overload and overheat protection, overvoltage and overcurrent protected
Dimensions	143 x 74 x 25mm
Conform to the norm	CAT 0 60V
Power supply	no battery required, operates from solar panel voltage
Measuring instrument features	HOLD function
DC voltage measuring range	12...60V DC
DC current measuring range	0...35A
Mérőműszer típusa	digital

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.485.40
