SPH-002T-P0.5L

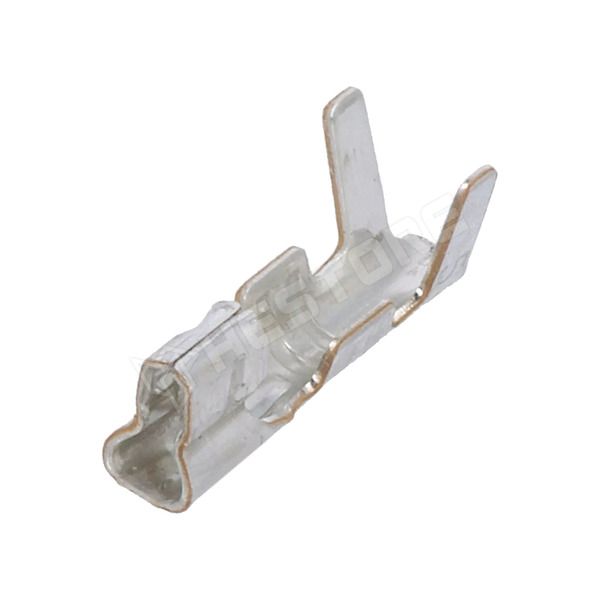

Crimp contact, female, phosphor bronze, tinned, 0.08...0.22mm2

Manufacturer partno	SPH-002T-P0.5L
RoHS	yes
Manufacturer	JST
Connector	contact
Connector variant	wire-board
Kind of connector	female
Electrical mounting	crimped
Mechanical mounting	for cable
Related items	WC-240
Contacts pitch	2mm
Current rating	2A
Contact plating	tinned
Contact material	phosphor bronze
Max. voltage	100V
Wire size	28AWG...24AWG
Wire cross section	0.08...0.22mm²
Type of connector	wire-board
Alkalmazás - sorozat/gyártó	PH

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.483.80

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	50,53 Ft (39,79 Ft +VAT)
10+	16,33 Ft (12,86 Ft +VAT)
50+	10,21 Ft (8,04 Ft +VAT)
100+	7,45 Ft (5,87 Ft +VAT)
200+	6,03 Ft (4,75 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1000
3 workdays	> 100000
10-15 workdays	> 100000
