ESP32-OLED-C

Name: ESP32-OLED-C
Brand: HESTORE
SKU: 100.480.22
Availability: InStock

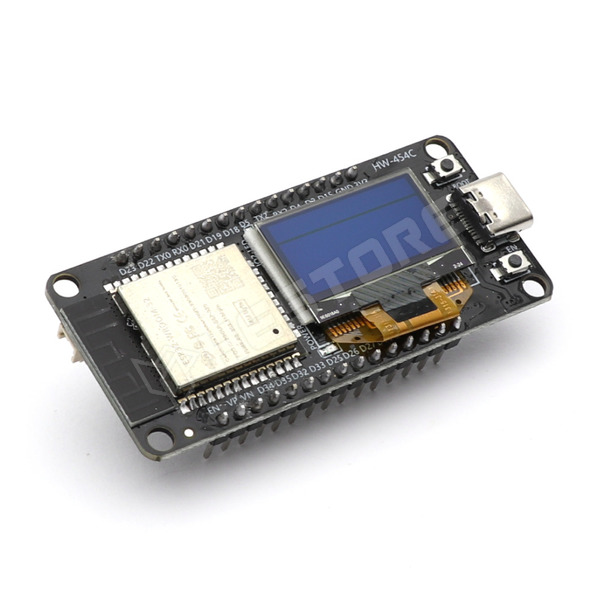

ESP32-WROOM-32 development board with 0.96″ yellow-blue OLED display

SPI Flash: 32Mbit
Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards
Wi-Fi: 802.11b/g/n/
Interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC
IO ports: 22
Serial port speed: default 115200bps
Spectrum range: 2412~2484MHz
Antenna form: built-in PCB antenna with 2dBi gain
Security: WPA/WPA2/WPA2 Enterprise/WPS

Connectors: 2 x 15pin
Pin row-distance: 25.4mm
USB connector: USB-C
USB-TTL converter: CH340
Operating temperature: -20...80°C
Dimensions: 53.2 x 28.7 mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.22

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	3 116 Ft
5+	2 829 Ft
10+	2 760 Ft
20+	2 702 Ft
50+	2 624 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 75
10-15 workdays	> 2000
