STM32F411CEU-M

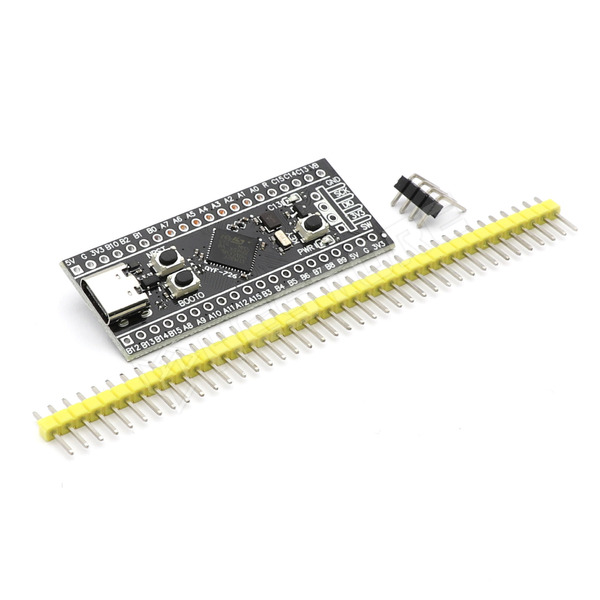

STM32F411CEU ARM Cortex M4 development module
- STM32F411CEU6 100MHz, 128kb RAM, 512kb ROM
- Crystals: 25MHz, 32.768kHz
- USART x 3, I2C x 3, SPI x 5, USBFS x 1
- ADC x 1(10), I2S x 5, CRC x 1, TIM x 8
- 2 x 20 Pin 2.54mm pitch I/O interface
- 4 Pin 2.54mm pitch SW debug interface x 1
- USB-C (Type C) interface x 1
- User button (PA0) x 1
- Reset button (NRST) x 1
- Boot0 button x 1
- Dimensions: 53 x 21mm
- Pin-row distance: 15,24mm
- Crystals: 25MHz, 32.768kHz
- USART x 3, I2C x 3, SPI x 5, USBFS x 1
- ADC x 1(10), I2S x 5, CRC x 1, TIM x 8
- 2 x 20 Pin 2.54mm pitch I/O interface
- 4 Pin 2.54mm pitch SW debug interface x 1
- USB-C (Type C) interface x 1
- User button (PA0) x 1
- Reset button (NRST) x 1
- Boot0 button x 1
- Dimensions: 53 x 21mm
- Pin-row distance: 15,24mm
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.479.19
Quantity (pcs):
Unit price excl. VAT
| 1+ | 3 215 Ft |
|---|---|
| 5+ | 2 924 Ft |
| 10+ | 2 853 Ft |
| 20+ | 2 794 Ft |
| 50+ | 2 713 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 5 |
| 10-15 workdays | > 10000 |
