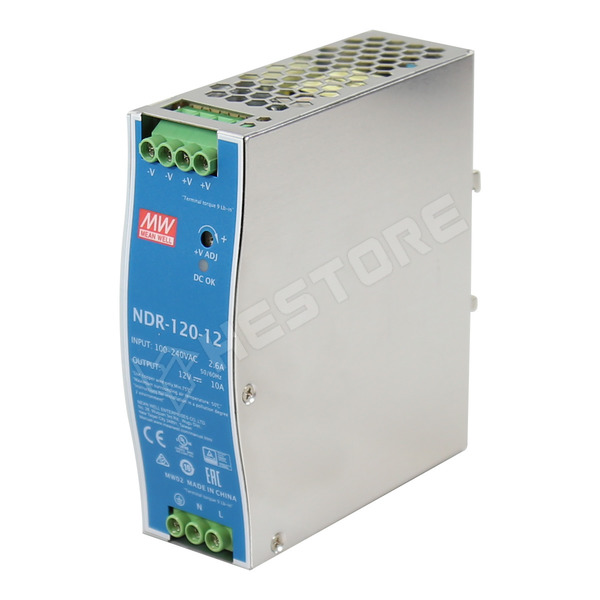

| Manufacturer partno | NDR-120-12 |
|---|---|
| RoHS | yes |
| Manufacturer | MEAN WELL |
| Power | 0.12kW |
| Output voltage | 12V DC |
| Series | NDR-120 |
| Mounting | for DIN rail mounting |
| Operating temperature | -20...70°C |
| Body dimensions | 40x125.2x113.5mm |
| Supply voltage | 90...264V AC, 127...370V DC |
| Output current | 10A |
| Type of power supply | switching, switched-mode |
| Kind of power supply | for DIN rail mounting, slim |
| Electrical connection | terminal block |
| Protection | short circuit protection, overheating, anti-overload, anti-overvoltage |
| Number of outputs | 1 |
| Body dimensions | 40x125.2x113.5mm |
| Efficiency | 85.5% |
| Caution! | rated parameters obtained at full load |
| Additional functions | output voltage correctness indication |
| Output voltage range | 12...14V DC |
| kimeneti feszültségtartomány | 12...14V DC |
