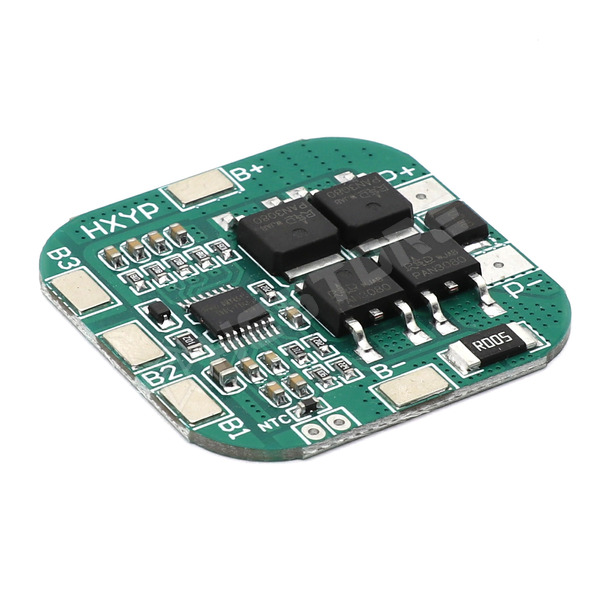

HXYP-4S-BM20

Name: HXYP-4S-BM20
Brand: HESTORE
SKU: 100.468.34
Availability: InStock

BMS module, 4S, 14.8V, 15A

One of the main disadvantages of lithium batteries is that they are very sensitive to the parameters of charging and discharging, especially overcharging and deep discharging.
Therefore, if we want to build a long-lasting, high-capacity energy storage, additional electronics may be necessary.
Collectively, these electronic devices are called Battery Management System or BMS.

Attention! BMS modules do not replace charging circuits! The charging current is not regulated!

Operating temperature	-40...50°C
Protection	overheating, Over current, Over-discharge, Overcharging, Short circuit
Operating current	15A
Dimensions	36 x 36 x 3.6mm
Max. forward impulse current	20A
Supply current	25...40μA with NTC
Type of surge arrester	BM3451TNDC-T16A
Cells quantity	4
Type of rechargeable battery	Li-Ion/Polymer
Properties	10k NTC on board
Overcharge threshold	4.25V ±0.025V
Over-discharge voltage threshold	2.8V ±0.08V
Cell balancing	none
Charging voltage	16.8V
Battery contacts	nickel plated, suitable for spot welding

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.468.34
